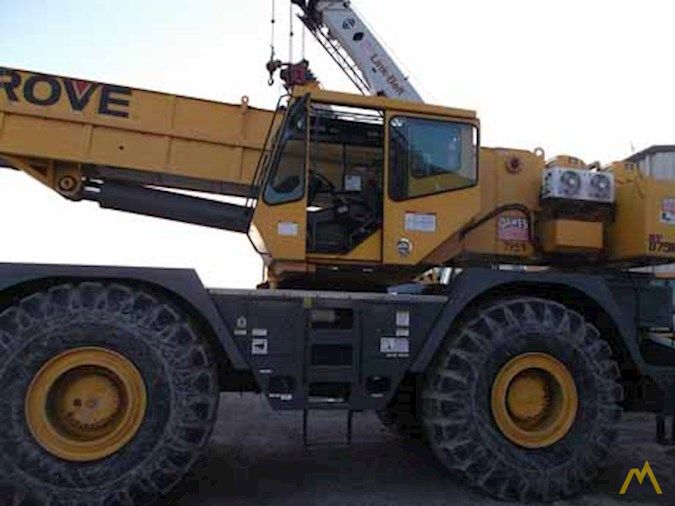

Grove RT875BXL
Browse All Grove or All Terrain Crane Models
Contents:
Boom
| Max Elevating Angle | 78 degrees |
| Number Of Sections | 5 |
| Swing Speed | 2 rpm |
Dimensions
| Transport Length | 43 ft in (13106 mm) |
| Transport Width | 10.34 ft in (3150 mm) |
| Transport Height | 13.05 ft in (3975 mm) |
| Width W/ Outriggers Extended | 17.34 ft in (5283 mm) |
| Carrier Length | 28.26 ft in (8611 mm) |
| Upper Structure Tail Swing Radius | 12.26 ft in (3734 mm) |
| Gradeability | 87 % |
Upper Structure Engine
| Make | Grove |
Carrier Engine
| Make | Grove |
| Model | 3126TA |
| Gross Power | 249.5 hp (186 kw) |
| Net Power | 2500 hp (1864.3 kw) |
| Max Torque | 686 lb ft (930 Nm) |
| Torque Measured @ | 1650 rpm |
Operational
| Carrier Fuel Capacity | 80.1 gal (303 L) |
| Upper Structure Hydraulic System Fluid Capacity | 200 gal (757 L) |
| Operating Voltage | 24 V |
| Tire Size | 33.25 x 29 - 32PR |
Transmission
| Travel Speed | 24.9 mph (40 km/h) |
