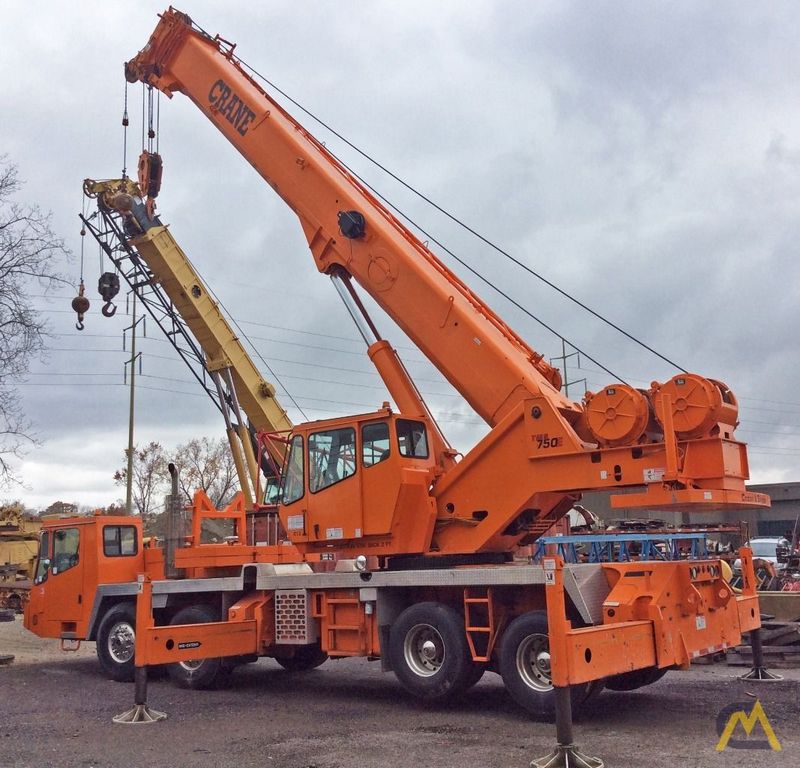

Grove TMS750E
Browse All Grove or Hydraulic Truck Crane Models
Contents:
Boom
| Max Height @ Max Raise Angle - No Jib | 131 ft in (39.93 m) |
| Max Elevating Angle | 80 degrees |
| Number Of Sections | 4 |
Dimensions
| Transport Length | 44.2 ft in (13470 mm) |
| Transport Width | 8.21 ft in (2500 mm) |
| Transport Height | 11.46 ft in (3490 mm) |
| Ground Clearance | 1.09 ft in (330 mm) |
| Width W/ Outriggers Extended | 24.51 ft in (7468 mm) |
| Carrier Length | 37.54 ft in (11440 mm) |
| Upper Structure Tail Swing Radius | 12.13 ft in (3695 mm) |
Upper Structure Engine
| Make | Grove |
| Model | BF6L913 |
| Gross Power | 159.6 hp (119 kw) |
| Power Measured @ | 2650 rpm |
| Max Torque | 361.5 lb ft (490 Nm) |
| Torque Measured @ | 1650 rpm |
| Displacement | 374.1 cu in (6.2 L) |
Carrier Engine
| Make | Grove |
| Model | F10L413F |
| Gross Power | 289.7 hp (216 kw) |
| Power Measured @ | 2500 rpm |
| Max Torque | 700.7 lb ft (950 Nm) |
| Torque Measured @ | 1500 rpm |
| Displacement | 976.4 cu in (16 L) |
Operational
| Operating Weight | 92594.2 lb (42000 kg) |
| Number Of Axels | 4 |
| Upper Structure Fuel Capacity | 60.8 gal (230 L) |
| Carrier Fuel Capacity | 110.5 gal (418 L) |
| Upper Structure Hydraulic System Fluid Capacity | 167 gal (632 L) |
| Operating Voltage | 24 V |
| Tire Size | 14.00x20 |
Transmission
| Number Of Forward Gears | 13 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 40 mph (64.4 km/h) |
