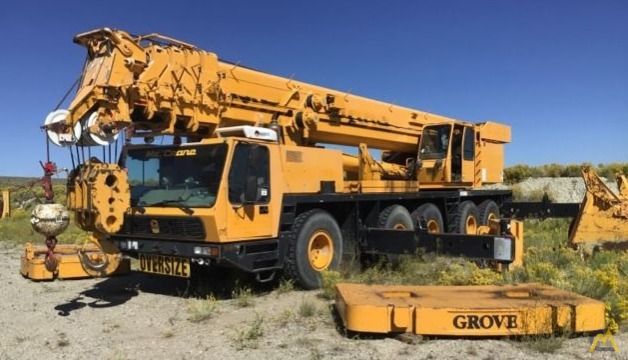

Grove GMK5160
Browse All Grove or All Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 49.22 ft in (15 m) |
| Max Height @ Max Raise Angle - No Jib | 170.61 ft in (52 m) |
| Max Elevating Angle | 85 degrees |
| Number Of Sections | 5 |
Dimensions
| Transport Length | 50.73 ft in (15460 mm) |
| Transport Width | 9.85 ft in (3000 mm) |
| Transport Height | 12.96 ft in (3950 mm) |
| Width W/ Outriggers Extended | 26.91 ft in (8200 mm) |
| Carrier Length | 44.38 ft in (13525 mm) |
| Upper Structure Tail Swing Radius | 15.87 ft in (4835 mm) |
Upper Structure Engine
| Number Of Cylinders | 6 |
| Make | Grove |
| Model | OM366A |
| Gross Power | 139.5 hp (104 kw) |
| Power Measured @ | 1800 rpm |
| Max Torque | 417.5 lb ft (566 Nm) |
| Torque Measured @ | 1600 rpm |
Carrier Engine
| Make | Grove |
| Model | OM442LA |
| Gross Power | 496.2 hp (370 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 1548.9 lb ft (2100 Nm) |
| Torque Measured @ | 1100 rpm |
| Number Of Cylinders | 8 |
| Aspiration | Turbocharged |
| Emission Level | EUROMOT (EURO I) / EPA / CARB |
Operational
| Number Of Axels | 5 |
| Upper Structure Fuel Capacity | 52.9 gal (200 L) |
| Carrier Fuel Capacity | 105.7 gal (400 L) |
| Upper Structure Hydraulic System Fluid Capacity | 396.3 gal (1500 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 55 amps |
| Tire Size | 14.00 R25 |
Transmission
| Transmission Type | Allison automatic CLBT 755 |
| Number Of Forward Gears | 5 |
| Number Of Reverse Gears | 1 |
