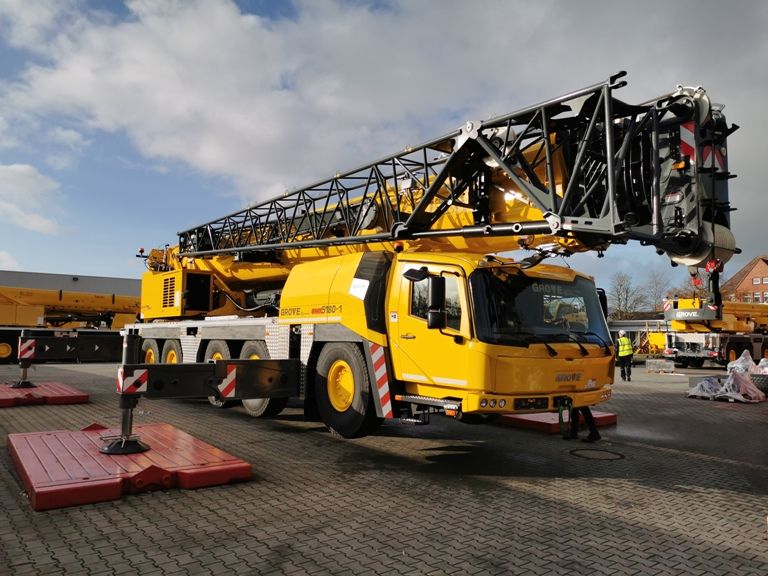

Grove GMK5180
Browse All Grove or All Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 44.3 ft in (13.5 m) |
| Max Height @ Max Raise Angle - No Jib | 196.86 ft in (60 m) |
| Max Elevating Angle | 82 degrees |
| Number Of Sections | 6 |
Dimensions
| Transport Length | 50.73 ft in (15460 mm) |
| Transport Width | 9.85 ft in (3000 mm) |
| Transport Height | 12.98 ft in (3956 mm) |
| Width W/ Outriggers Extended | 27.24 ft in (8300 mm) |
| Carrier Length | 43.34 ft in (13210 mm) |
| Upper Structure Tail Swing Radius | 16.39 ft in (4995 mm) |
Upper Structure Engine
| Make | Grove |
| Model | OM904LA |
| Gross Power | 163.7 hp (122 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 486.8 lb ft (660 Nm) |
| Torque Measured @ | 1200 rpm |
Carrier Engine
| Make | Grove |
| Model | OM502LA |
| Gross Power | 563.3 hp (420 kw) |
| Power Measured @ | 1800 rpm |
| Max Torque | 1991.5 lb ft (2700 Nm) |
| Torque Measured @ | 1080 rpm |
| Number Of Cylinders | 8 |
| Aspiration | Turbocharged |
| Emission Level | EURO II / EUROMOT / EPA / CARB |
Operational
| Number Of Axels | 5 |
| Upper Structure Fuel Capacity | 52.9 gal (200 L) |
| Carrier Fuel Capacity | 105.7 gal (400 L) |
| Upper Structure Hydraulic System Fluid Capacity | 258.9 gal (980 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 100 amps |
| Tire Size | 14.00 R25 |
Transmission
| Transmission Type | Allison automatic CLT 755 |
| Number Of Forward Gears | 5 |
| Number Of Reverse Gears | 1 |
