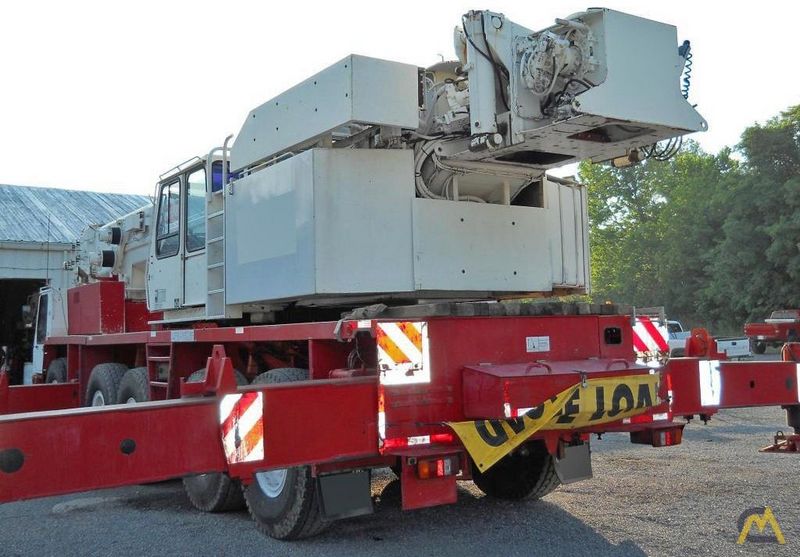

Grove GMK5175
Browse All Grove or All Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 43 ft in (13.11 m) |
| Max Height @ Max Raise Angle - No Jib | 161 ft in (49.08 m) |
| Min Working Radius | 10 ft in (3.05 m) |
| Max Working Radius | 145 ft in (44.2 m) |
| Max Elevating Angle | 85 degrees |
| Number Of Sections | 5 |
| Max Lift Capacity | 269000 lb (122016.36 kg) |
| Swing Speed | 1.5 rpm |
Dimensions
| Transport Length | 50.73 ft in (15460 mm) |
| Transport Width | 9.85 ft in (3000 mm) |
| Transport Height | 12.96 ft in (3950 mm) |
| Width W/ Outriggers Extended | 26.91 ft in (8200 mm) |
| Carrier Length | 44.03 ft in (13420 mm) |
| Upper Structure Tail Swing Radius | 16.25 ft in (4950 mm) |
Upper Structure Engine
| Number Of Cylinders | 6 |
| Cooling System | Water-cooled |
| Make | Grove |
| Model | OM 366 A |
| Gross Power | 139.5 hp (104 kw) |
| Power Measured @ | 1800 rpm |
| Max Torque | 413 lb ft (560 Nm) |
| Torque Measured @ | 1600 rpm |
Carrier Engine
| Make | Grove |
| Model | OM 442 LA |
| Gross Power | 496.2 hp (370 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 1475 lb ft (1999.9 Nm) |
| Torque Measured @ | 1400 rpm |
Operational
| Operating Weight | 133232 lb (60433 kg) |
| Number Of Axels | 5 |
| Upper Structure Fuel Capacity | 52.9 gal (200 L) |
| Carrier Fuel Capacity | 105.7 gal (400 L) |
| Upper Structure Hydraulic System Fluid Capacity | 396.3 gal (1500 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 55 amps |
| Tire Size | 20.5R25 |
Transmission
| Transmission Type | Allison automatic powershift |
| Number Of Forward Gears | 5 |
| Number Of Reverse Gears | 1 |
| Max Speed - Forward | 55.4 mph (89 km/h) |
