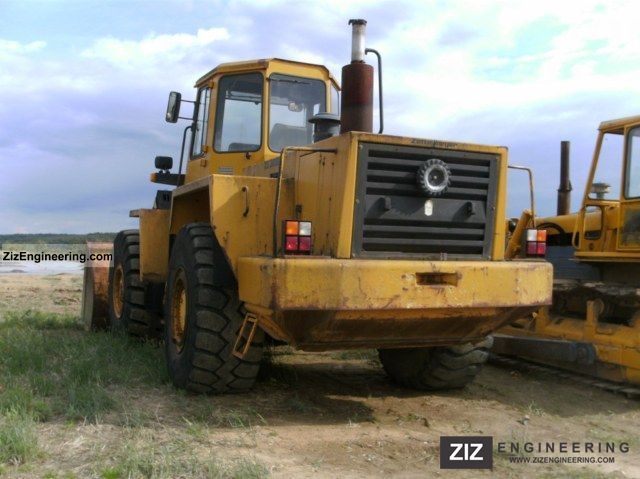

Zettelmeyer ZL3002
Browse All Zettelmeyer or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 11.16 ft in (3400 mm) |
| Breakout Force | 53279.72 lb (237 kN) |
| Bucket Capacity - Heaped | 3.54 yd3 (2.7 m3) |
| Bucket Capacity - Struck | 3.01 yd3 (2.3 m3) |
| Bucket Width | 9.85 ft in (3000 mm) |
Dimensions
| Ground Clearance | 1.45 ft in (440 mm) |
| Length With Bucket On Ground | 26.78 ft in (8160 mm) |
| Height To Top Of Cab | 11.32 ft in (3450 mm) |
| Wheelbase | 11.65 ft in (3550 mm) |
| Hinge Pin - Max Height | 14.28 ft in (4350 mm) |
| Reach At Max Lift And Dump | 3.12 ft in (950 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | 6CT 8.3 |
| Net Power | 197 hp (147 kw) |
| Gross Power | 208 hp (155.2 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 560.6 lb ft (760 Nm) |
| Displacement | 504.7 cu in (8.3 L) |
| Torque Measured @ | 1500 rpm |
| Aspiration | turbocharged |
Operational
| Operating Weight | 41887.9 lb (19000 kg) |
| Fuel Capacity | 95.2 gal (360 L) |
| Hydraulic System Fluid Capacity | 60.8 gal (230 L) |
| Engine Oil Fluid Capacity | 5.1 gal (19 L) |
| Transmission Fluid Capacity | 7.4 gal (28 L) |
| Front Axle/Diff Fluid Capacity | 8.2 gal (31 L) |
| Rear Axle/Diff Fluid Capacity | 8.2 gal (31 L) |
| Static Tipping Weight | 34612.6 lb (15700 kg) |
| Turning Radius | 22.5 ft in (6850 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 65 amps |
| Rear Axle Oscillation | 24 degrees |
| Tire Size | 23.5-25 16PR |
Transmission
| Transmission Type | full powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 21.8 mph (35 km/h) |
| Max Speed - Reverse | 13.4 mph (21.5 km/h) |
Hydraulic System
| Relief Valve Setting | 3335.9 psi (23000 kPa) |
| Pump Flow Capacity | 78.8 gal/min (298 L/min) |
| Raise Time | 6.5 sec |
| Dump Time | 1.7 sec |
| Lower Time | 4.6 sec |
| Pump Type | tandem axial piston |
