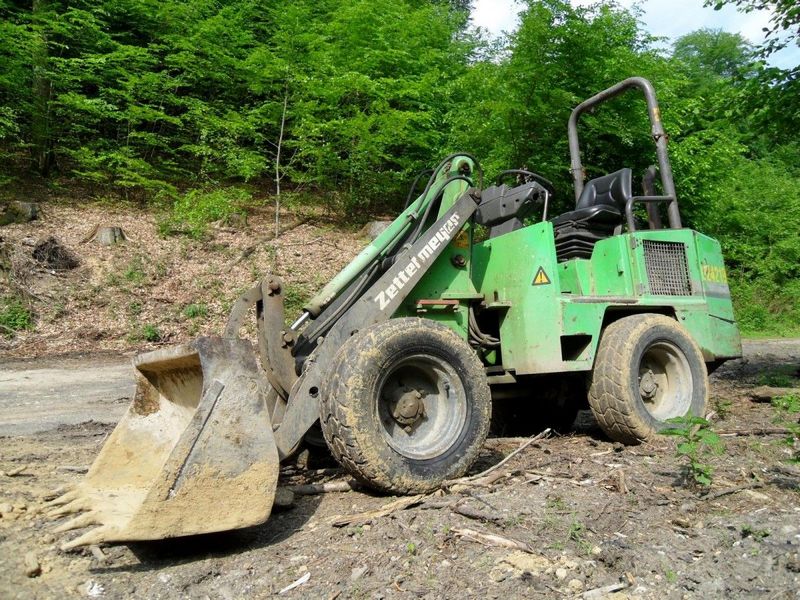

Zettelmeyer ZL302
Browse All Zettelmeyer or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 6.6 ft in (2010 mm) |
| Bucket Capacity - Heaped | 0.4 yd3 (0.3 m3) |
| Bucket Width | 4.43 ft in (1350 mm) |
| Breakout Force | 4383.78 lb (19.5 kN) |
Dimensions
| Ground Clearance | 0.76 ft in (230 mm) |
| Length With Bucket On Ground | 12.93 ft in (3940 mm) |
| Width Over Tires | 4.24 ft in (1290 mm) |
| Height To Top Of Cab | 7.58 ft in (2310 mm) |
| Wheelbase | 4.93 ft in (1500 mm) |
| Hinge Pin - Max Height | 8.34 ft in (2540 mm) |
| Reach At Max Lift And Dump | 1.51 ft in (460 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Model | KHD F4 M 1008 |
| Net Power | 28.2 hp (21 kw) |
| Gross Power | 29.6 hp (22 kw) |
| Power Measured @ | 3000 rpm |
| Max Torque | 56.1 lb ft (76 Nm) |
| Displacement | 74.5 cu in (1.3 L) |
| Torque Measured @ | 1850 rpm |
| Aspiration | indirect injection |
Operational
| Operating Weight | 4188.8 lb (1900 kg) |
| Fuel Capacity | 10.1 gal (38 L) |
| Hydraulic System Fluid Capacity | 7.4 gal (28 L) |
| Engine Oil Fluid Capacity | 1.2 gal (4.3 L) |
| Front Axle/Diff Fluid Capacity | 1.4 gal (5 L) |
| Rear Axle/Diff Fluid Capacity | 1.6 gal (6 L) |
| Static Tipping Weight | 2866.1 lb (1300 kg) |
| Turning Radius | 9.9 ft in (3000 mm) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 65 amps |
| Rear Axle Oscillation | 20 degrees |
| Tire Size | 10.0/75-15.3 |
Transmission
| Transmission Type | hydrostatic full power shift |
| Number Of Forward Gears | 1 |
| Number Of Reverse Gears | 1 |
| Max Speed - Forward | 12.5 mph (20 km/h) |
| Max Speed - Reverse | 12.5 mph (20 km/h) |
Hydraulic System
| Relief Valve Setting | 2900 psi (19994.8 kPa) |
| Pump Flow Capacity | 5.6 gal/min (21 L/min) |
| Raise Time | 6 sec |
| Dump Time | 2.5 sec |
| Lower Time | 3 sec |
| Pump Type | gear type |
