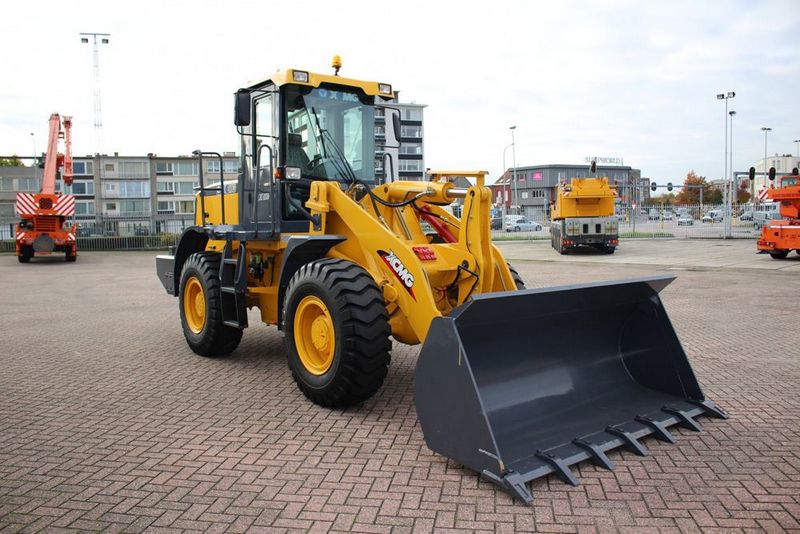

XCMG LW320G
Browse All XCMG or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.19 ft in (2800 mm) |
| Bucket Capacity - Heaped | 2.23 yd3 (1.7 m3) |
| Breakout Force | _ - (110 kN) |
Dimensions
| Ground Clearance | 1.2 ft in (365 mm) |
| Length With Bucket On Ground | 24.38 ft in (7430 mm) |
| Height To Top Of Cab | 10.41 ft in (3170 mm) |
| Wheelbase | 8.86 ft in (2700 mm) |
| Reach At Max Lift And Dump | 3.38 ft in (1030 mm) |
Engine
| Engine Model | Yuchai |
| Net Power | 114 hp (85 kw) |
Operational
| Operating Weight | 23148.6 lb (10500 kg) |
| Fuel Capacity | 38.4 gal (145 L) |
| Static Tipping Weight | 18100 lb (8210 kg) |
| Tire Size | 17.5-25 |
Transmission
| Transmission Type | countershaft and mech fork shift |
