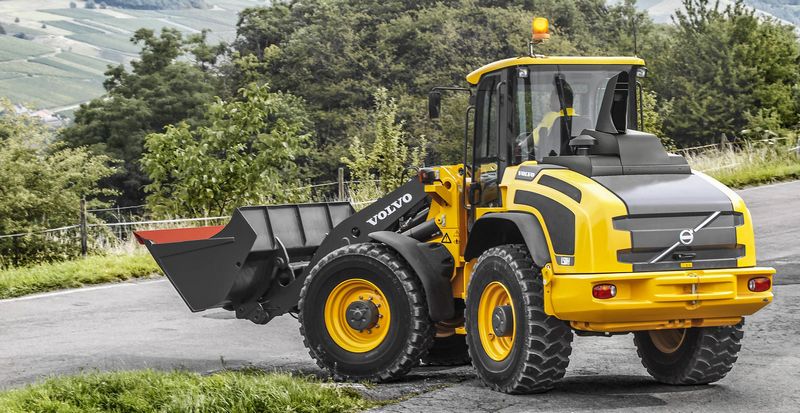

Volvo L45H
Browse All Volvo or Wheel Loader Models
Contents:
Bucket
| Breakout Force | 15961.44 lb (71 kN) |
Dimensions
| Ground Clearance | 1.3 ft in (395 mm) |
| Length With Bucket On Ground | 20.9 ft in (6370 mm) |
| Width Over Tires | 7.06 ft in (2150 mm) |
| Height To Top Of Cab | 9.68 ft in (2950 mm) |
| Wheelbase | 8.7 ft in (2650 mm) |
| Hinge Pin - Max Height | 12.09 ft in (3685 mm) |
Steering System
| Working Pressure | 17.5 MPa, 2538 psi |
| Articulation Angle | 40 degrees |
| Steering Cylinders | 2 |
| Maximum Flow | 18.5 gal/min (70 L/min) |
Hydraulic Cycle Times (Unloaded)
| Lift | 4.8 sec |
| Lower | 3.2 sec |
| Dump Time | 1.5 sec |
Electrical System
| Battery Capacity | 2 x 100 Ah |
| Cold Cranking Capacity | 830 A |
| Alternator Rating | 3080/110 (W/A) |
| Starter Motor Output | 7.4 hp (5.5 kw) |
| Voltage | 24 V V (deletedelete) |
| Batteries | 2 x 12 V |
Engine
| Number Of Cylinders | 4 |
| Engine Model | Volvo D4J |
| Net Power | 97.9 hp (73.1 kw) |
| Gross Power | 100 hp (74.6 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | Gross - 425 Nm, Net - 416 Nm |
| Displacement | 244.1 cu in (4 L) |
| Torque Measured @ | 1450 rpm |
| Aspiration | Turbocharged |
Drive Train
| Transport Speed, Maximum | 18.7 mph (30 km/h) |
Operational
| Def Tank Capacity | 5.3 gal (20 L) |
| Fuel Capacity | 39.7 gal (150 L) |
| Hydraulic System Fluid Capacity | 25.1 gal (95 L) |
| Engine Oil Fluid Capacity | 3.7 gal (14 L) |
| Cooling System Fluid Capacity | 5.3 gal (20 L) |
| Transmission Fluid Capacity | 0.4 gal (1.2 L) |
Axles
| Rear Axle Oscillation | 12 degrees |
| Axle Oil Front | 4.7 gal (17.5 L) |
| Axle Oil Rear | 4.7 gal (17.5 L) |
Hydraulic System
| Working Pressure | 26 MPa, 3771 psi |
| Engine Speed | 2200 rpm |
| Pump Flow Capacity | 34.9 gal/min (132 L/min) |
