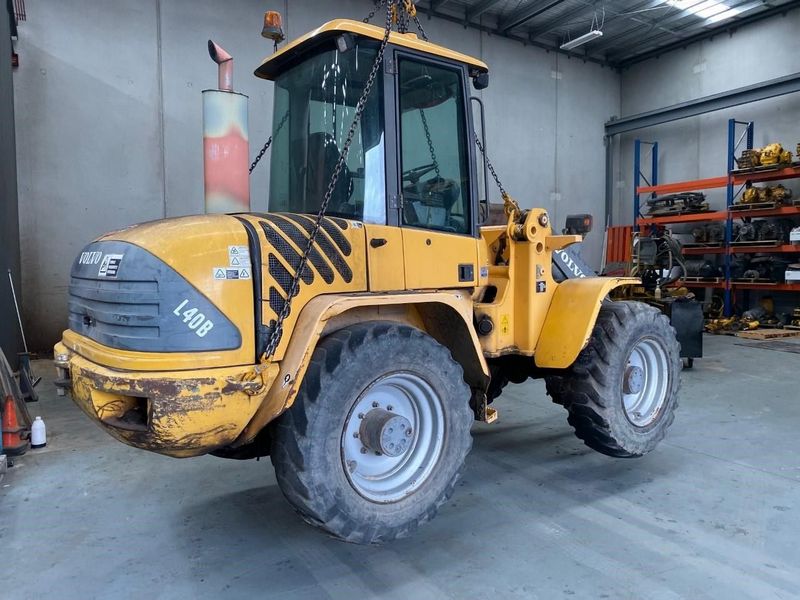

Volvo L40B
Browse All Volvo or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 8.99 ft in (2740 mm) |
| Bucket Capacity - Heaped | 1.6 yd3 (1.23 m3) |
| Bucket Width | 7.42 ft in (2250 mm) |
| Breakout Force | 13713 lb (61 kN) |
Dimensions
| Ground Clearance | 1.33 ft in (415 mm) |
| Length With Bucket On Ground | 19.18 ft in (5850 mm) |
| Width Over Tires | 7.09 ft in (2160 mm) |
| Height To Top Of Cab | 9.58 ft in (2930 mm) |
| Wheelbase | 7.83 ft in (2400 mm) |
| Hinge Pin - Max Height | 11.67 ft in (3555 mm) |
| Reach At Max Lift And Dump | 2.78 ft in (845 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2244 |
| Engine Model | D5DCAE2 |
| Net Power | 94 hp (69 kw) |
| Gross Power | 97 hp (71 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 277 lb ft (375 Nm) |
| Displacement | 290.5 cu in (4.8 L) |
| Torque Measured @ | 1400 rpm |
| Aspiration | Turbocharged |
Operational
| Operating Weight | 17417 lb (7900 kg) |
| Fuel Capacity | 34.3 gal (130 L) |
| Hydraulic System Fluid Capacity | 31.7 gal (120 L) |
| Engine Oil Fluid Capacity | 3.7 gal (14 L) |
| Front Axle/Diff Fluid Capacity | 2 gal (7.9 L) |
| Rear Axle/Diff Fluid Capacity | 2.6 gal (9.9 L) |
| Static Tipping Weight | 11574 lb (5250 kg) |
| Turning Radius | 7.3 ft in (2220 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 55 amps |
| Rear Axle Oscillation | 20 degrees |
| Tire Size | 15.5-25 |
Transmission
| Transmission Type | Hydrostatic |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 12.5 mph (20 km/h) |
| Max Speed - Reverse | 12.5 mph (20 km/h) |
Hydraulic System
| Relief Valve Setting | 3335.9 psi (23000 kPa) |
| Pump Flow Capacity | 28 gal/min (106 L/min) |
| Raise Time | 6 sec |
| Dump Time | 1.5 sec |
| Lower Time | 5 sec |
| Pump Type | Axial piston pump |
