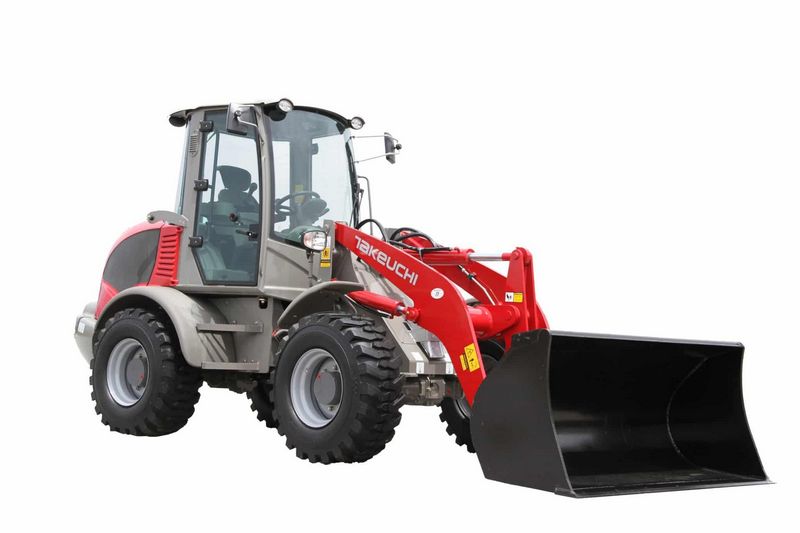

Takeuchi TW80
Browse All Takeuchi or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 102.5 ft in (31242 mm) |
| Bucket Capacity - Heaped | 1.3 yd3 (1 m3) |
| Bucket Width | 81.42 ft in (24816.82 mm) |
| Breakout Force | 15287 lb (68 kN) |
Dimensions
| Ground Clearance | 1.57 ft in (477.54 mm) |
| Length With Bucket On Ground | 219.58 ft in (66927.99 mm) |
| Width Over Tires | 6.73 ft in (2049.79 mm) |
| Height To Top Of Cab | 8.56 ft in (2606.04 mm) |
| Wheelbase | 7.15 ft in (2179.33 mm) |
| Hinge Pin - Max Height | 11.1 ft in (3380.76 mm) |
| Reach At Max Lift And Dump | 2.43 ft in (739.14 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2349 |
| Engine Model | BF4L 2011 |
| Gross Power | 73 hp (54.5 kw) |
| Power Measured @ | 2300 rpm |
| Max Torque | 170 lb ft (230.5 Nm) |
| Displacement | 189.8 cu in (3.2 L) |
| Torque Measured @ | 1600 rpm |
Operational
| Operating Weight | 12677 lb (5750.2 kg) |
| Fuel Capacity | 26.4 gal (100 L) |
| Hydraulic System Fluid Capacity | 19.8 gal (75 L) |
| Engine Oil Fluid Capacity | 2.8 gal (10.5 L) |
| Static Tipping Weight | 9420 lb (4272.9 kg) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 80 amps |
| Rear Axle Oscillation | 24 degrees |
| Tire Size | Heavy Duty - 15-19.5 12-ply |
Transmission
| Transmission Type | Hydrostatic |
| Max Speed - Forward | 12.4 mph (20 km/h) |
Hydraulic System
| Relief Valve Setting | 3263 psi (22497.6 kPa) |
| Pump Flow Capacity | 19.8 gal/min (75 L/min) |
| Raise Time | 6 sec |
| Dump Time | 1.2 sec |
| Lower Time | 4.1 sec |
