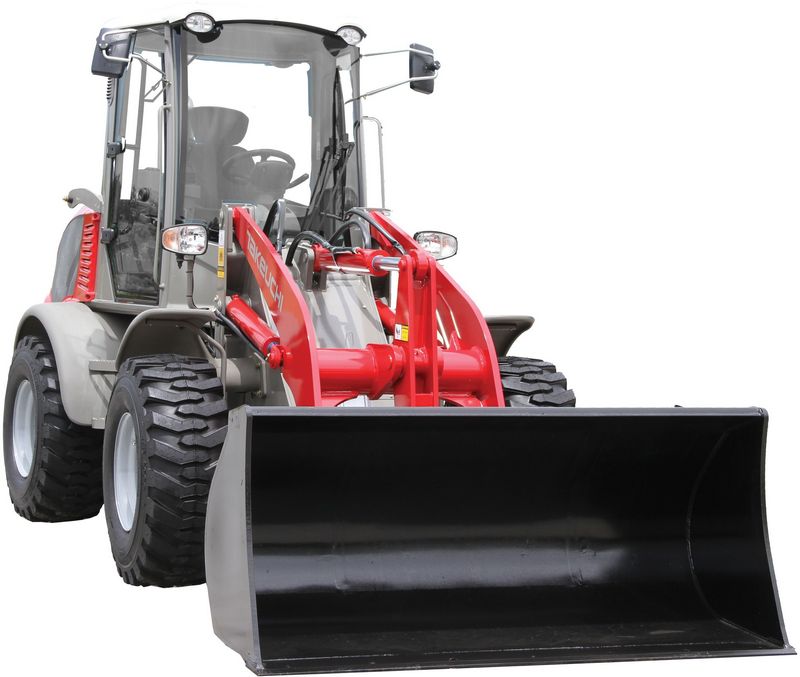

Takeuchi TW65
Browse All Takeuchi or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 8.2 ft in (2499 mm) |
| Bucket Capacity - Heaped | 1.12 yd3 (0.84 m3) |
| Bucket Width | 5.91 ft in (1803 mm) |
| Breakout Force | 11600 lb (51.6 kN) |
Dimensions
| Ground Clearance | 1.48 ft in (449.58 mm) |
| Length With Bucket On Ground | 17.15 ft in (5229 mm) |
| Width Over Tires | 6.14 ft in (1869.43 mm) |
| Height To Top Of Cab | 8.69 ft in (2649 mm) |
| Wheelbase | 6.56 ft in (1998.97 mm) |
| Hinge Pin - Max Height | 10.4 ft in (3169.92 mm) |
| Reach At Max Lift And Dump | 2.5 ft in (762 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2349 |
| Engine Model | F4L 2011 |
| Gross Power | 59 hp (44 kw) |
| Power Measured @ | 2300 rpm |
| Max Torque | 140 lb ft (189.9 Nm) |
| Displacement | 189.8 cu in (3.2 L) |
| Torque Measured @ | 1700 rpm |
| Torque Rise | 140 % |
Operational
| Operating Weight | 10362 lb (4700.2 kg) |
| Fuel Capacity | 26.4 gal (100 L) |
| Hydraulic System Fluid Capacity | 13.7 gal (51.9 L) |
| Engine Oil Fluid Capacity | 2.8 gal (10.5 L) |
| Static Tipping Weight | 8073 lb (3661.9 kg) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 60 amps |
| Rear Axle Oscillation | 24 degrees |
| Tire Size | Heavy Duty - 15-19.5 12-ply |
Transmission
| Transmission Type | Hydrostatic |
| Max Speed - Forward | 12.4 mph (- km/h) |
| Max Speed - Reverse | 12.4 mph (- km/h) |
Hydraulic System
| Relief Valve Setting | 3336 psi (23000.9 kPa) |
| Pump Flow Capacity | 15.3 gal/min (58 L/min) |
| Raise Time | 5.5 sec |
| Dump Time | 1.7 sec |
| Lower Time | 3.5 sec |
