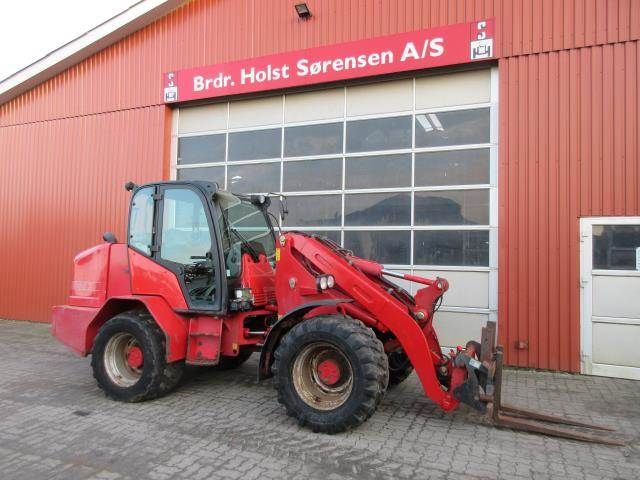

Schaffer 9300Z
Browse All Schaffer or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.85 ft in (3000 mm) |
| Bucket Width | 7.22 ft in (2200 mm) |
| Bucket Capacity - Heaped | 1.44 yd3 (1.11 m3) |
Dimensions
| Ground Clearance | 0.99 ft in (300 mm) |
| Length With Bucket On Ground | 17.54 ft in (5345 mm) |
| Width Over Tires | 6.73 ft in (2050 mm) |
| Height To Top Of Cab | 8.08 ft in (2460 mm) |
| Wheelbase | 7.12 ft in (2170 mm) |
| Reach At Max Lift And Dump | 1.53 ft in (465 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2349 |
| Engine Model | BF4M2012 |
| Net Power | 100.5 hp (74.9 kw) |
| Power Measured @ | 2500 rpm |
| Displacement | 244.1 cu in (4 L) |
| Aspiration | Turbocharged |
Operational
| Operating Weight | 13778.9 lb (6250 kg) |
| Static Tipping Weight | 7936.7 lb (3600 kg) |
| Turning Radius | 5.7 ft in (1725 mm) |
| Tire Size | 405x70-20 |
Transmission
| Transmission Type | Hydrostatic |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 12.5 mph (20 km/h) |
| Max Speed - Reverse | 12.5 mph (20 km/h) |
