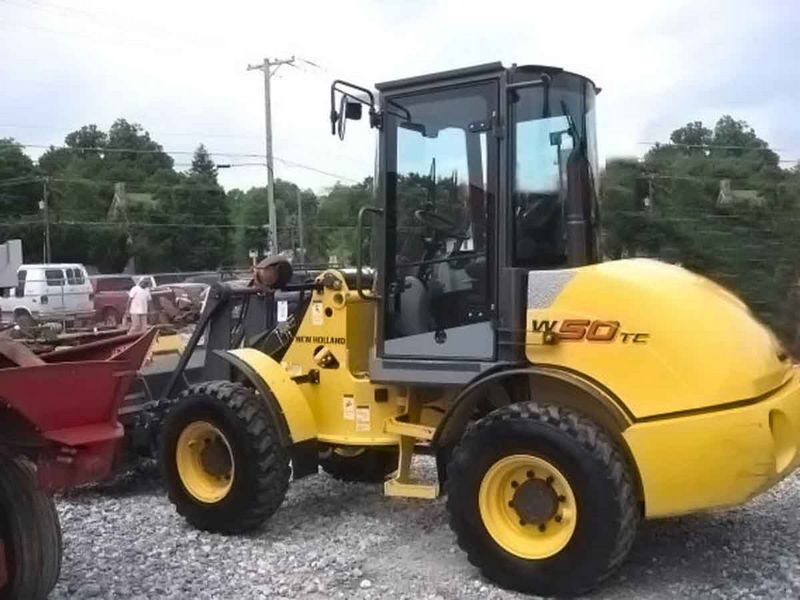

New Holland W50TC
Browse All New Holland or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.29 ft in (2829 mm) |
| Bucket Capacity - Heaped | 1 yd3 (0.77 m3) |
| Bucket Capacity - Struck | 0.73 yd3 (0.56 m3) |
| Bucket Width | 6.25 ft in (1905 mm) |
| Breakout Force | 8386 lb (37.31 kN) |
Dimensions
| Ground Clearance | 1.09 ft in (330 mm) |
| Length With Bucket On Ground | 17.49 ft in (5329 mm) |
| Width Over Tires | 6.1 ft in (1857 mm) |
| Height To Top Of Cab | 8.9 ft in (2711 mm) |
| Wheelbase | 85.9 ft in (2182 mm) |
| Hinge Pin - Max Height | 10.22 ft in (3113 mm) |
| Reach At Max Lift And Dump | 2.75 ft in (838 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2349 |
| Engine Model | F4M2011 |
| Net Power | 51 hp (38.1 kw) |
| Gross Power | 55 hp (41.1 kw) |
| Power Measured @ | 2300 rpm |
| Max Torque | 136 lb ft (184.4 Nm) |
| Displacement | 190 cu in (3.2 L) |
| Torque Measured @ | 1700 rpm |
| Aspiration | Natural |
Operational
| Operating Weight | 10258.2 lb (4653 kg) |
| Fuel Capacity | 26.4 gal (100 L) |
| Hydraulic System Fluid Capacity | 14.8 gal (56.1 L) |
| Engine Oil Fluid Capacity | 2.6 gal (9.9 L) |
| Cooling System Fluid Capacity | 3 gal (11.4 L) |
| Front Axle/Diff Fluid Capacity | 2 gal (7.6 L) |
| Rear Axle/Diff Fluid Capacity | 2.4 gal (9.1 L) |
| Static Tipping Weight | 7377 lb (3346.2 kg) |
| Turning Radius | 12.7 ft in (3847 mm) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 55 amps |
| Rear Axle Oscillation | 24 degrees |
| Tire Size | 335/80 R18 |
Transmission
| Transmission Type | Hydrostatic |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 11.6 mph (18.7 km/h) |
Hydraulic System
| Relief Valve Setting | 3335 psi (22994 kPa) |
| Pump Flow Capacity | 14 gal/min (53 L/min) |
| Raise Time | 6 sec |
| Dump Time | 1 sec |
| Lower Time | 3 sec |
| Pump Type | Gear |
