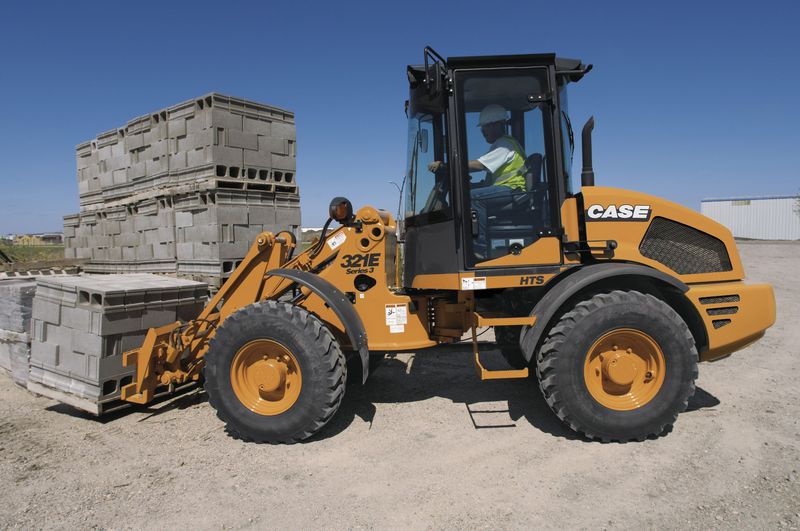

Case 21E
Browse All Case or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 8.22 ft in (2502 mm) |
| Bucket Capacity - Heaped | 1.05 yd3 (0.81 m3) |
| Bucket Capacity - Struck | 0.92 yd3 (0.71 m3) |
| Bucket Width | 6.23 ft in (1900 mm) |
| Breakout Force | 7801 lb (_ -) |
Dimensions
| Ground Clearance | 13 ft in (330 mm) |
| Length With Bucket On Ground | 17.45 ft in (5315 mm) |
| Width Over Tires | 6.09 ft in (1857 mm) |
| Height To Top Of Cab | 8.83 ft in (2690 mm) |
| Wheelbase | 7.16 ft in (2182 mm) |
| Hinge Pin - Max Height | 10.67 ft in (3252 mm) |
| Reach At Max Lift And Dump | 2.8 ft in (851 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2239 |
| Engine Model | 432T/M3 |
| Net Power | 52 hp (38 kw) |
| Gross Power | 54.2 hp (40.4 kw) |
| Power Measured @ | 2300 rpm |
| Max Torque | 125 lb ft (169 Nm) |
| Displacement | 190 cu in (3.2 L) |
| Torque Measured @ | 1700 rpm |
Operational
| Operating Weight | 10168 lb (4612 kg) |
| Fuel Capacity | 26.4 gal (100 L) |
| Hydraulic System Fluid Capacity | 14.8 gal (56 L) |
| Engine Oil Fluid Capacity | 2.6 gal (10 L) |
| Front Axle/Diff Fluid Capacity | 2 gal (7.5 L) |
| Rear Axle/Diff Fluid Capacity | 2 gal (7.5 L) |
| Static Tipping Weight | 7342 lb (3330 kg) |
| Turning Radius | 12.7 ft in (3847 mm) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 55 amps |
| Rear Axle Oscillation | 24 degrees |
| Tire Size | 365/80 R20 |
Transmission
| Transmission Type | Hydrostatic transmission |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 12.4 mph (20 km/h) |
| Max Speed - Reverse | 12.4 mph (20 km/h) |
Hydraulic System
| Relief Valve Setting | 3625 psi (25000 kPa) |
| Pump Flow Capacity | 13.5 gal/min (51 L/min) |
| Raise Time | 6 sec |
| Dump Time | 1 sec |
| Lower Time | 3 sec |
| Pump Type | Open-centered pressure/flow compensated |
