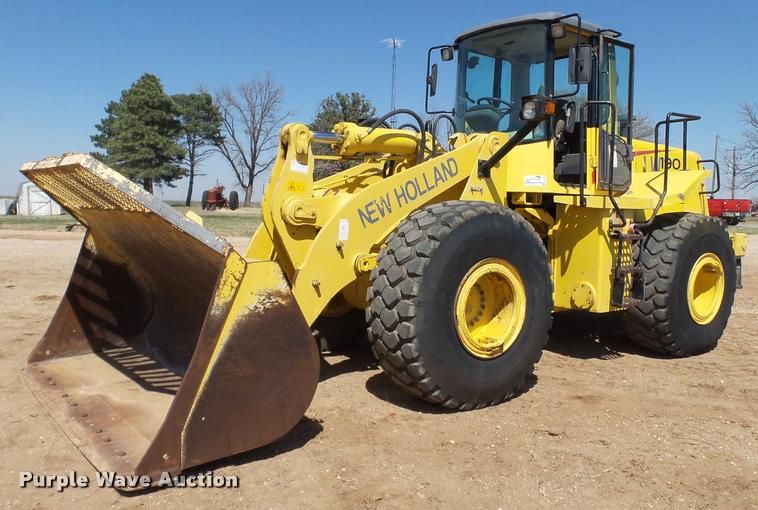

New Holland LW190
Browse All New Holland or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.72 ft in (2960 mm) |
| Bucket Capacity - Heaped | 4.19 yd3 (3.2 m3) |
| Bucket Width | 9.59 ft in (2920 mm) |
| Breakout Force | 35935 lb (35935 -) |
Dimensions
| Ground Clearance | 1.48 ft in (450 mm) |
| Length With Bucket On Ground | 26.22 ft in (7990 mm) |
| Width Over Tires | 12.34 ft in (3760 mm) |
| Height To Top Of Cab | 11.03 ft in (3360 mm) |
| Wheelbase | 10.5 ft in (3200 mm) |
| Reach At Max Lift And Dump | 3.52 ft in (1070 mm) |
Engine
| Engine Make | 2347 |
| Engine Model | 6CT 8.3 |
| Net Power | 205 hp (152.9 kw) |
| Gross Power | 194 hp (144.7 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 506.5 cu in (8.3 L) |
Operational
| Operating Weight | 35935.4 lb (16300 kg) |
| Fuel Capacity | 63.5 gal (240 L) |
| Hydraulic System Fluid Capacity | 39.7 gal (150 L) |
| Static Tipping Weight | 31085.2 lb (14100 kg) |
| Turning Radius | 21.4 ft in (6500 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 50 amps |
| Tire Size | 23.5x25 XHA |
Transmission
| Transmission Type | countershaft, automatic |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 23.4 mph (37.5 km/h) |
| Max Speed - Reverse | 24.9 mph (40 km/h) |
