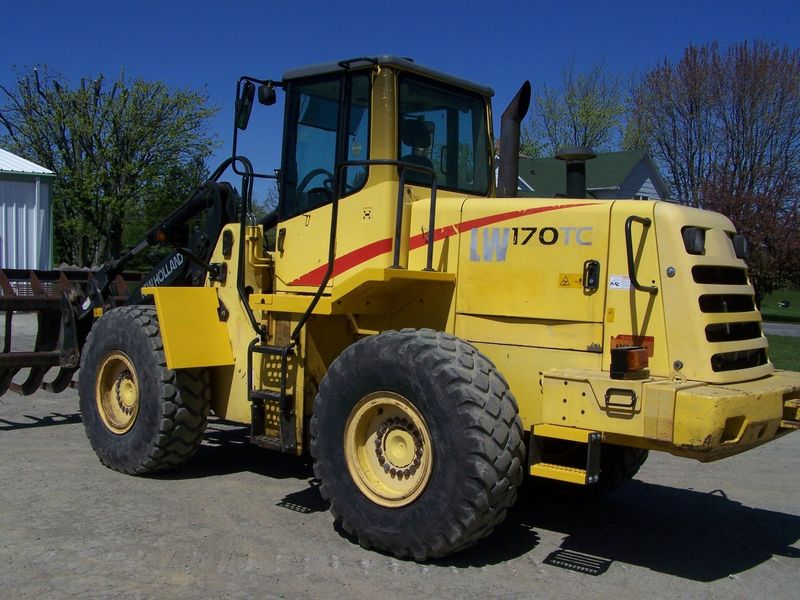

New Holland LW170TC
Browse All New Holland or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 8.91 ft in (2715 mm) |
| Bucket Capacity - Heaped | 3.14 yd3 (2.4 m3) |
Dimensions
| Ground Clearance | 1.32 ft in (400 mm) |
| Length With Bucket On Ground | 27.14 ft in (8270 mm) |
| Height To Top Of Cab | 10.82 ft in (3295 mm) |
| Wheelbase | 10.01 ft in (3050 mm) |
| Hinge Pin - Max Height | 13.01 ft in (3965 mm) |
| Reach At Max Lift And Dump | 4.94 ft in (1505 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | 6CT8.3 |
| Net Power | 182 hp (135.8 kw) |
| Gross Power | 170 hp (126.8 kw) |
| Max Torque | 514 lb ft (696.9 Nm) |
| Displacement | 506.5 cu in (8.3 L) |
| Aspiration | Turbocharged |
Operational
| Operating Weight | 34612.6 lb (15700 kg) |
| Fuel Capacity | 58.2 gal (220 L) |
| Hydraulic System Fluid Capacity | 39.7 gal (150 L) |
| Engine Oil Fluid Capacity | 6.4 gal (24 L) |
| Cooling System Fluid Capacity | 11.9 gal (45 L) |
| Transmission Fluid Capacity | 5.3 gal (20 L) |
| Front Axle/Diff Fluid Capacity | 7.7 gal (29 L) |
| Rear Axle/Diff Fluid Capacity | 9.6 gal (36 L) |
| Turning Radius | 20.4 ft in (6200 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 50 amps |
| Rear Axle Oscillation | 26 degrees |
| Tire Size | 20.5x25 XHA |
Transmission
| Transmission Type | powershift, countershaft |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 22.4 mph (36 km/h) |
| Max Speed - Reverse | 24 mph (38.5 km/h) |
Hydraulic System
| Relief Valve Setting | 3046 psi (21001.5 kPa) |
| Pump Flow Capacity | 69.8 gal/min (264 L/min) |
| Raise Time | 6.2 sec |
| Dump Time | 3.5 sec |
| Lower Time | 3.4 sec |
| Pump Type | sealed ssystem with anticavitation and relief valves |
