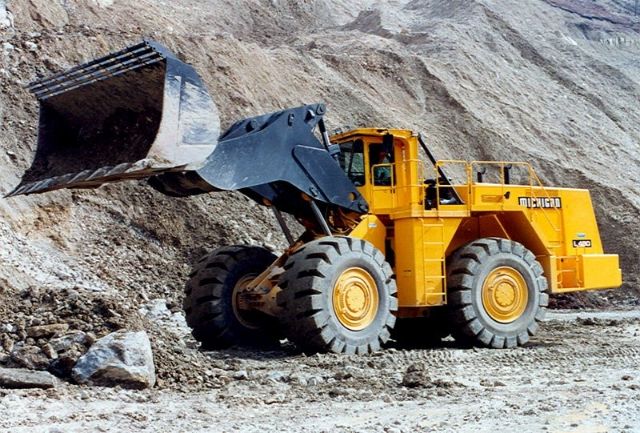

Michigan L480
Browse All Michigan or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 15.5 ft in (4724 mm) |
| Bucket Capacity - Heaped | 12.56 yd3 (9.6 m3) |
| Bucket Capacity - Struck | 10.57 yd3 (8.08 m3) |
| Bucket Width | 14.36 ft in (4374 mm) |
| Breakout Force | 142000 lb (631.71 kN) |
Dimensions
| Ground Clearance | 1.92 ft in (584 mm) |
| Length With Bucket On Ground | 42.42 ft in (12929 mm) |
| Width Over Tires | 13.51 ft in (4115 mm) |
| Height To Top Of Cab | 16.01 ft in (4877 mm) |
| Wheelbase | 15.17 ft in (4623 mm) |
| Hinge Pin - Max Height | 20.59 ft in (6274 mm) |
| Reach At Max Lift And Dump | 6.09 ft in (1854 mm) |
Engine
| Number Of Cylinders | 12 |
| Engine Make | 2347 |
| Engine Model | VTA-28C |
| Net Power | 620 hp (462.4 kw) |
| Gross Power | 725 hp (540.7 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 2363 lb ft (3203.8 Nm) |
| Displacement | 1710 cu in (28.1 L) |
| Torque Measured @ | 1300 rpm |
| Aspiration | turbo + aftercooled |
Operational
| Operating Weight | 177280 lb (80412.9 kg) |
| Fuel Capacity | 99.4 gal (376 L) |
| Hydraulic System Fluid Capacity | 65.6 gal (248 L) |
| Engine Oil Fluid Capacity | 7.2 gal (27 L) |
| Cooling System Fluid Capacity | 16.2 gal (61 L) |
| Transmission Fluid Capacity | 8.8 gal (33 L) |
| Front Axle/Diff Fluid Capacity | 7.7 gal (29 L) |
| Rear Axle/Diff Fluid Capacity | 7.7 gal (29 L) |
| Static Tipping Weight | 109560 lb (49695.6 kg) |
| Turning Radius | 34.1 ft in (10388.5 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 100 amps |
| Rear Axle Oscillation | 20 degrees |
| Tire Size | 41.25/70-39 (34PR) L-5 |
Transmission
| Transmission Type | Clark 8422 H-204 countershaft type powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 19.9 mph (32.1 km/h) |
| Max Speed - Reverse | 19.9 mph (32.1 km/h) |
Hydraulic System
| Relief Valve Setting | 2825 psi (19477.7 kPa) |
| Pump Flow Capacity | 241 gal/min (912.3 L/min) |
| Raise Time | 11.4 sec |
| Dump Time | 4 sec |
| Lower Time | 5.8 sec |
| Pump Type | three gear type |
