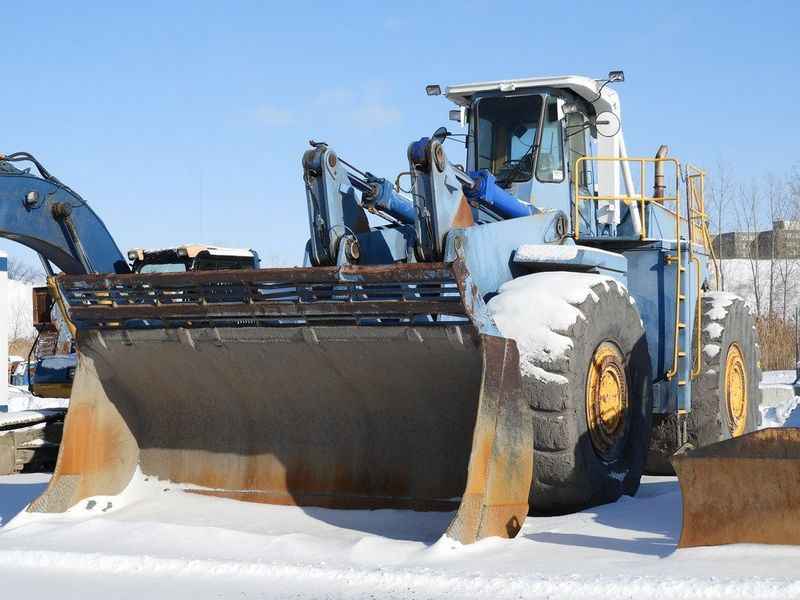

Clark Michigan 475C
Browse All Clark Michigan or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 15.42 ft in (4699 mm) |
| Bucket Capacity - Heaped | 12.01 yd3 (9.18 m3) |
| Bucket Capacity - Struck | 9.84 yd3 (7.52 m3) |
| Bucket Width | 14.69 ft in (4475 mm) |
| Breakout Force | 95633.72 lb (425.4 kN) |
Dimensions
| Ground Clearance | 1.92 ft in (584 mm) |
| Length With Bucket On Ground | 40.84 ft in (12446 mm) |
| Width Over Tires | 13.51 ft in (4115 mm) |
| Height To Top Of Cab | 16.01 ft in (4877 mm) |
| Wheelbase | 15.17 ft in (4623 mm) |
| Hinge Pin - Max Height | 20.59 ft in (6274 mm) |
| Reach At Max Lift And Dump | 5.92 ft in (1803 mm) |
Engine
| Number Of Cylinders | 12 |
| Engine Make | 2347 |
| Engine Model | VTA-1710C |
| Net Power | 630.3 hp (470 kw) |
| Gross Power | 700.1 hp (522 kw) |
| Power Measured @ | 2000 rpm |
| Max Torque | 2173.6 lb ft (2947 Nm) |
| Displacement | 1708.7 cu in (28 L) |
| Torque Measured @ | 1500 rpm |
Operational
| Operating Weight | 167763 lb (76096 kg) |
| Fuel Capacity | 273 gal (1033.4 L) |
| Hydraulic System Fluid Capacity | 150 gal (567.8 L) |
| Engine Oil Fluid Capacity | 27 gal (102.2 L) |
| Cooling System Fluid Capacity | 60 gal (227.1 L) |
| Transmission Fluid Capacity | 33 gal (124.9 L) |
| Front Axle/Diff Fluid Capacity | 29.1 gal (109.8 L) |
| Rear Axle/Diff Fluid Capacity | 29.1 gal (109.8 L) |
| Static Tipping Weight | 101550 lb (46062.4 kg) |
| Turning Radius | 34.3 ft in (10439.5 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 100 amps |
| Rear Axle Oscillation | 20 degrees |
| Tire Size | 41.25/70-39 34PR |
Transmission
| Transmission Type | Clark countershaft powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 18.6 mph (29.9 km/h) |
| Max Speed - Reverse | 18.6 mph (29.9 km/h) |
Hydraulic System
| Relief Valve Setting | 2700 psi (18615.9 kPa) |
| Pump Flow Capacity | 230.9 gal/min (874 L/min) |
| Raise Time | 12 sec |
| Dump Time | 3.7 sec |
| Lower Time | 6.3 sec |
| Pump Type | three gear type |
