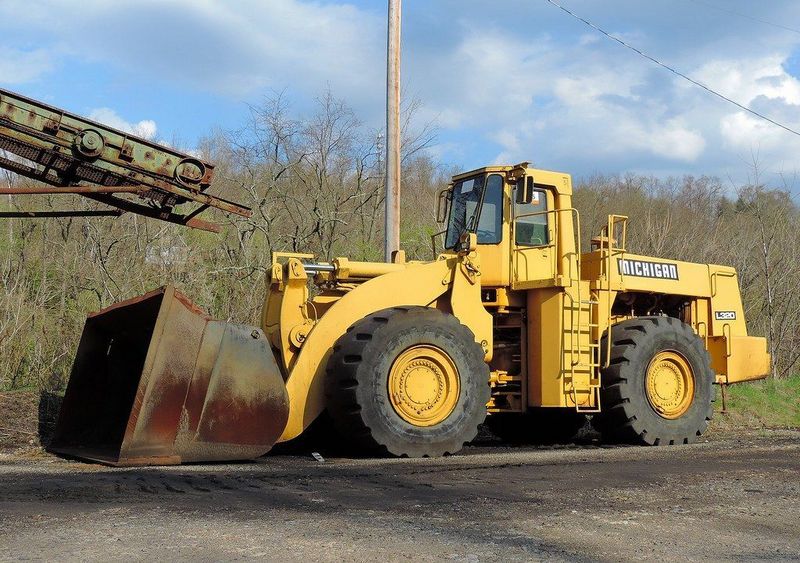

Michigan L320
Browse All Michigan or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 12.42 ft in (3785 mm) |
| Bucket Capacity - Heaped | 8 yd3 (6.12 m3) |
| Bucket Capacity - Struck | 6.63 yd3 (5.07 m3) |
| Bucket Width | 13 ft in (3962 mm) |
| Breakout Force | 101600 lb (452.1 kN) |
Dimensions
| Ground Clearance | 1.84 ft in (559 mm) |
| Length With Bucket On Ground | 34.3 ft in (10452 mm) |
| Width Over Tires | 11.92 ft in (3632 mm) |
| Height To Top Of Cab | 13.75 ft in (4191 mm) |
| Wheelbase | 13.32 ft in (4059 mm) |
| Hinge Pin - Max Height | 16.59 ft in (5055 mm) |
| Reach At Max Lift And Dump | 5.55 ft in (1689 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | KTA 19C |
| Net Power | 417 hp (311 kw) |
| Gross Power | 452 hp (337.1 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 1597 lb ft (2165.3 Nm) |
| Displacement | 1150 cu in (18.9 L) |
| Torque Measured @ | 1500 rpm |
| Aspiration | turbo + aftercooled |
Operational
| Operating Weight | 99220 lb (45005.5 kg) |
| Fuel Capacity | 212.2 gal (803 L) |
| Hydraulic System Fluid Capacity | 160.1 gal (606 L) |
| Engine Oil Fluid Capacity | 13.5 gal (51.1 L) |
| Cooling System Fluid Capacity | 35.1 gal (132.5 L) |
| Transmission Fluid Capacity | 18 gal (68.1 L) |
| Front Axle/Diff Fluid Capacity | 18 gal (68.1 L) |
| Rear Axle/Diff Fluid Capacity | 18 gal (68.1 L) |
| Static Tipping Weight | 67812 lb (30759.1 kg) |
| Turning Radius | 29.6 ft in (9004.5 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 100 amps |
| Rear Axle Oscillation | 24 degrees |
| Tire Size | 35/65-33 (30PR) L-4 |
Transmission
| Transmission Type | Clark 6421-11 countershaft type powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 22.1 mph (35.6 km/h) |
| Max Speed - Reverse | 13 mph (21 km/h) |
Hydraulic System
| Relief Valve Setting | 2900 psi (19994.8 kPa) |
| Pump Flow Capacity | 194 gal/min (734.4 L/min) |
| Raise Time | 9 sec |
| Dump Time | 2.1 sec |
| Lower Time | 5.4 sec |
| Pump Type | three gear type |
