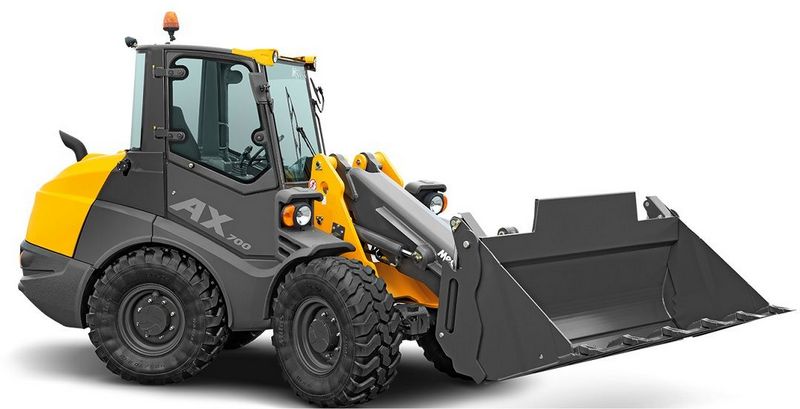

Mecalac AX 700
Browse All Mecalac or Wheel Loader Models
Contents:
Bucket
| Breakout Force | 3500 daN |
| Bucket Capacity - Heaped | 1.57 yd3 (1.2 m3) |
| Dumping Angle, Top | 45 degrees |
| Lifting Force | 3500 daN |
| Payload On Forks, Max. Turned, Frontal | 4629.71 lb (2100 kg) |
| Thrust Force | 3800 daN |
| Tipping Load Standard Bucket | 7054.8 lb (3200 kg) |
Dimensions
| Ground Clearance | 1.38 ft in (420 mm) |
| Length With Bucket On Ground | 17.34 ft in (5285 mm) |
| Width Over Tires | 5.25 ft in (1600 mm) |
| Height To Top Of Cab | 8.11 ft in (2470 mm) |
| Wheelbase | 6.67 ft in (2030 mm) |
| Hinge Pin - Max Height | 10.75 ft in (3275 mm) |
| Reach At Max Lift And Dump | 2.56 ft in (780 mm) |
Engine
| Engine Model | Deutz TD 2.9 L4 |
| Net Power | 68 hp (50.8 kw) |
| Power Measured @ | 2300 rpm |
| Max Torque | 234 Nm |
| Battery | 100 Ah |
| Torque Measured @ | 1800 rpm |
| Aspiration | Low-noise, water-cooled, turbo diesel engine |
Operational
| Operating Weight | 10383.8 lb (4710 kg) |
| Fuel Capacity | 23 gal (87 L) |
| Hydraulic System Fluid Capacity | 15.9 gal (60 L) |
| Front Axle/Diff Fluid Capacity | 1.6 gal (5.9 L) |
| Rear Axle/Diff Fluid Capacity | 1.8 gal (6.8 L) |
| Steering Angle | 40 degrees |
| Turning Radius | 12.2 ft in (3700 mm) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 95 amps |
| Rear Axle Oscillation | 11 degrees |
| Tire Size | 12.5-18 |
Transmission
| Max Speed - Forward | 12.5 mph (20 km/h) |
Hydraulic System
| Pump Flow Capacity | 16.4 gal/min (62 L/min) |
| Pump Type | Single circuit hydraulics with central gear pump |
