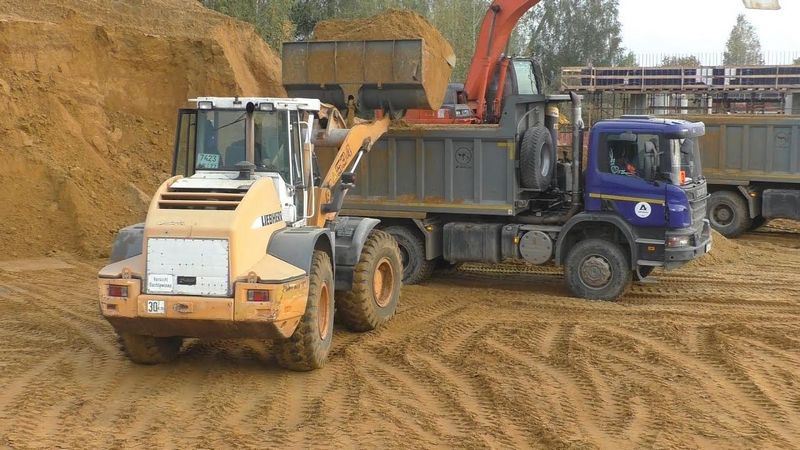

Liebherr L534
Browse All Liebherr or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.49 ft in (2890 mm) |
| Bucket Width | 8.21 ft in (2500 mm) |
| Bucket Capacity - Heaped | 3.14 yd3 (2.4 m3) |
Dimensions
| Ground Clearance | 1.51 ft in (460 mm) |
| Length With Bucket On Ground | 23.74 ft in (7235 mm) |
| Width Over Tires | 7.88 ft in (2400 mm) |
| Height To Top Of Cab | 10.67 ft in (3250 mm) |
| Wheelbase | 9.52 ft in (2900 mm) |
| Reach At Max Lift And Dump | 3.11 ft in (945 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2245 |
| Engine Model | D504Ti |
| Net Power | 134.2 hp (100 kw) |
| Power Measured @ | 2400 rpm |
| Displacement | 274.7 cu in (4.5 L) |
Operational
| Operating Weight | 26676 lb (12100 kg) |
| Static Tipping Weight | 19014.9 lb (8625 kg) |
| Turning Radius | 9.6 ft in (2912 mm) |
| Tire Size | 20.5R25 |
Transmission
| Transmission Type | Hydrostatic |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 21.2 mph (34 km/h) |
| Max Speed - Reverse | 21.2 mph (34 km/h) |
