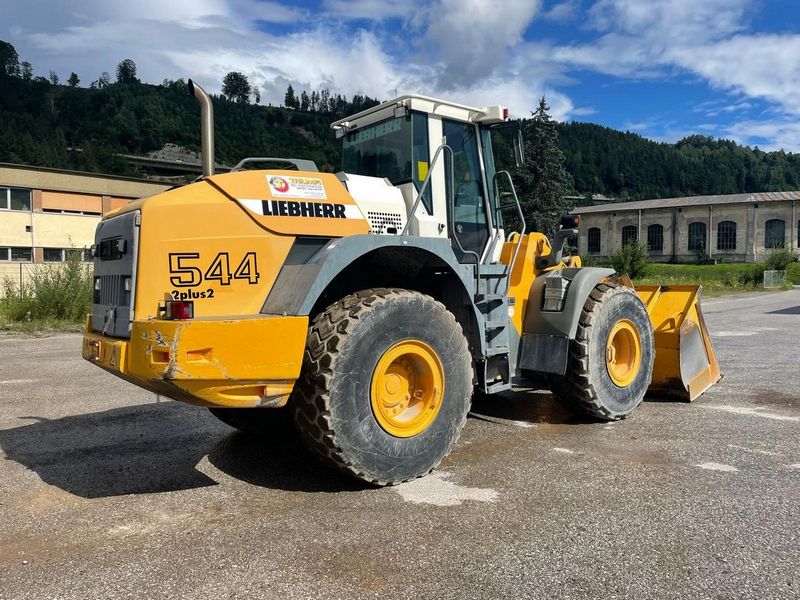

Liebherr L544 2plus2
Browse All Liebherr or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.59 ft in (2920 mm) |
| Breakout Force | _ - (125 kN) |
| Bucket Capacity - Heaped | 4.58 yd3 (3.5 m3) |
| Bucket Width | 8.86 ft in (2700 mm) |
Dimensions
| Ground Clearance | 1.42 ft in (430 mm) |
| Length With Bucket On Ground | 25.55 ft in (7785 mm) |
| Height To Top Of Cab | 11.01 ft in (3355 mm) |
| Wheelbase | 10.34 ft in (3150 mm) |
| Reach At Max Lift And Dump | 3.42 ft in (1040 mm) |
Engine
| Engine Make | 2245 |
| Engine Model | D924 TI-EA1 |
| Net Power | 162.3 hp (121 kw) |
Operational
| Operating Weight | 34546.5 lb (15670 kg) |
| Fuel Capacity | 68.7 gal (260 L) |
| Static Tipping Weight | 26499.6 lb (12020 kg) |
| Tire Size | 23.5R25 |
Transmission
| Transmission Type | Hydrostatic |
| Max Speed - Forward | 24.9 mph (40 km/h) |
| Max Speed - Reverse | 24.9 mph (40 km/h) |
