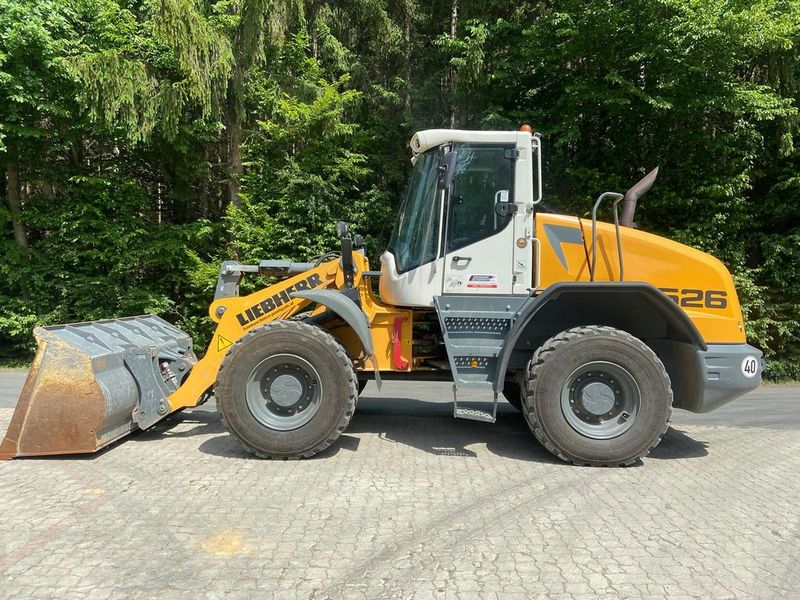

Liebherr L526
Browse All Liebherr or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.1 ft in (2773.68 mm) |
| Arm Length | 8.5 ft in (2590.81 mm) |
| Breakout Force | 22480 lb (100 kN) |
| Bucket Capacity - Heaped | 2.7 yd3 (2.07 m3) |
| Bucket Width | 8.2 ft in (2499.36 mm) |
| Digging Depth | 5 ft in (1524 mm) |
Dimensions
| Ground Clearance | 1.6 ft in (487.68 mm) |
| Length With Bucket On Ground | 25.3 ft in (7711.44 mm) |
| Height To Top Of Cab | 10.6 ft in (3230.88 mm) |
| Wheelbase | 9.7 ft in (2956.56 mm) |
| Hinge Pin - Max Height | 12.8 ft in (3901.44 mm) |
| Reach At Max Lift And Dump | 3.1 ft in (944.88 mm) |
Electrical System
| Alternator | 24/100 (V/A) |
| Voltage | 24 V V (deletedelete) |
| Starter | 24/10.5 (V/HP) |
| Battery | 2 x 135 Ah |
Engine
| Fuel Injection | Electronic Common Rail high-pressure injection |
| Number Of Cylinders | 4 |
| Engine Model | 4045HLC07 |
| Net Power | 135 hp (100.7 kw) |
| Air Cleaner | Dry type filter with main and safety element, pre-cleaner, service indicator on the Liebherr display |
| Gross Power | 138 hp (103 kw) |
| Power Measured @ | 2000 rpm |
| Max Torque | 404 lb ft |
| Displacement | 275 cu in (4.6 L) |
| Torque Measured @ | 1500 rpm |
| Aspiration | Water-cooled turbocharged in-line engine with cooled exhaust gas recirculation, exhaust after-treatment with a closed diesel particle filter system and SCR technology |
| Bore | 4.2 in (106 mm) |
| Stroke | 5 in (127 mm) |
Operational
| Operating Weight | 24800 lb (11249.1 kg) |
| Fuel Capacity | 54.2 gal (205.2 L) |
| Hydraulic System Fluid Capacity | 44.9 gal (170 L) |
| Engine Oil Fluid Capacity | 5.8 gal (22 L) |
| Cooling System Fluid Capacity | 8.2 gal (31.1 L) |
| Hydraulic Fluid Capacity | 25.1 gal (95.1 L) |
| Transmission Fluid Capacity | 0.7 gal (2.7 L) |
| Front Axle/Diff Fluid Capacity | 4.2 gal (15.9 L) |
| Rear Axle/Diff Fluid Capacity | 4.2 gal (15.9 L) |
| Static Tipping Weight | 16975 lb (7699.8 kg) |
| Turning Radius | 19.6 ft in (5974.1 mm) |
| Tire Size | 17.5R25 L3 |
Transmission
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 24.9 mph (40.1 km/h) |
| Max Speed - Reverse | 24.9 mph (40.1 km/h) |
Hydraulic System
| Max Operating Pressure | 4786 psi |
| Relief Valve Setting | 4351.2 psi (30000 kPa) |
| Pump Flow Capacity | 36 gal/min (136.3 L/min) |
| Raise Time | 5.3 sec |
| Dump Time | 2.1 sec |
| Lower Time | 3.6 sec |
| Pump Type | “Load-sensing” variable axial piston pump with output and flow control, and pressure cut-off in the control block |
