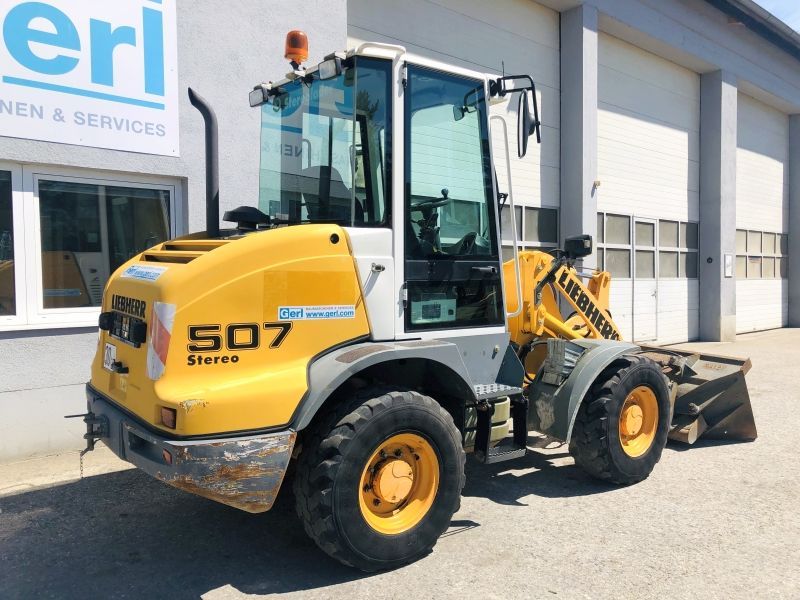

Liebherr L507ST
Browse All Liebherr or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 8.21 ft in (2500 mm) |
| Bucket Width | 5.91 ft in (1800 mm) |
| Bucket Capacity - Heaped | 1.18 yd3 (0.9 m3) |
Dimensions
| Ground Clearance | 1.07 ft in (325 mm) |
| Length With Bucket On Ground | 17.07 ft in (5200 mm) |
| Width Over Tires | 5.86 ft in (1785 mm) |
| Height To Top Of Cab | 8.86 ft in (2700 mm) |
| Wheelbase | 7.06 ft in (2150 mm) |
| Reach At Max Lift And Dump | 2.76 ft in (840 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2245 |
| Engine Model | D404T |
| Net Power | 61.7 hp (46 kw) |
| Power Measured @ | 2800 rpm |
| Displacement | 166.6 cu in (2.8 L) |
Operational
| Operating Weight | 11552.3 lb (5240 kg) |
| Static Tipping Weight | 7718.4 lb (3501 kg) |
| Turning Radius | 6.2 ft in (1877 mm) |
| Tire Size | 365/70R18 |
Transmission
| Transmission Type | Hydrostatic |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 12.5 mph (20 km/h) |
| Max Speed - Reverse | 12.5 mph (20 km/h) |
