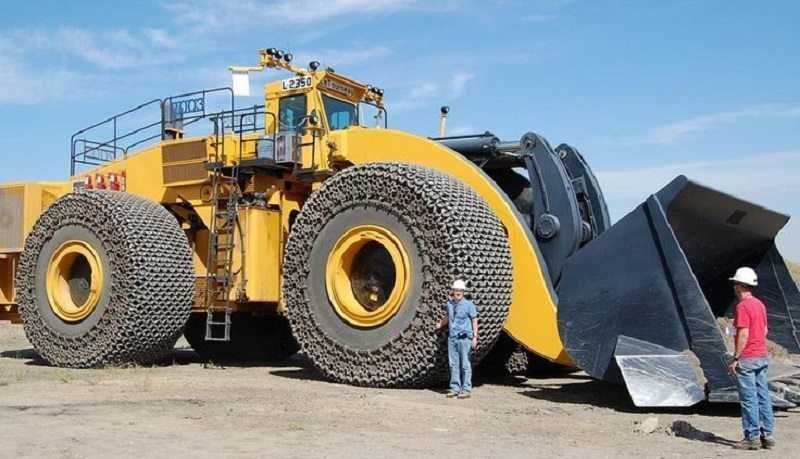

LeTourneau L2350
Browse All LeTourneau or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 23.04 ft in (7020 mm) |
| Bucket Capacity - Heaped | 53 yd3 (40.53 m3) |
| Bucket Width | 24.87 ft in (7580 mm) |
| Breakout Force | 263702 lb (1173.01 kN) |
Dimensions
| Ground Clearance | 1.65 ft in (500 mm) |
| Length With Bucket On Ground | 66.61 ft in (20300 mm) |
| Width Over Tires | 22.18 ft in (6760 mm) |
| Height To Top Of Cab | 21.17 ft in (6450 mm) |
| Wheelbase | 25.86 ft in (7880 mm) |
| Hinge Pin - Max Height | 32.52 ft in (9910 mm) |
| Reach At Max Lift And Dump | 10.44 ft in (3180 mm) |
Engine
| Engine Make | 2347 |
| Engine Model | QSK 60 |
| Gross Power | 2300 hp (1715.2 kw) |
| Power Measured @ | 1900 rpm |
| Displacement | 2746 cu in (45 L) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 577999.2 lb (262176 kg) |
| Fuel Capacity | 1050.1 gal (3975 L) |
| Hydraulic System Fluid Capacity | 382 gal (1446 L) |
| Cooling System Fluid Capacity | 130 gal (492 L) |
| Transmission Fluid Capacity | 7.2 gal (27 L) |
| Front Axle/Diff Fluid Capacity | 25.1 gal (95 L) |
| Rear Axle/Diff Fluid Capacity | 25.1 gal (95 L) |
| Static Tipping Weight | 406312 lb (184300 kg) |
| Turning Radius | 68.7 ft in (20920 mm) |
| Rear Axle Oscillation | 26 degrees |
| Tire Size | 70/70-57 82PR |
Transmission
| Transmission Type | infinitely variable |
| Max Speed - Forward | 10.6 mph (16.9 km/h) |
| Max Speed - Reverse | 10.6 mph (16.9 km/h) |
Hydraulic System
| Relief Valve Setting | 4000 psi (27579.1 kPa) |
| Pump Flow Capacity | 374.9 gal/min (1419 L/min) |
| Raise Time | 16 sec |
| Dump Time | 3 sec |
| Lower Time | 6 sec |
| Pump Type | piston |
