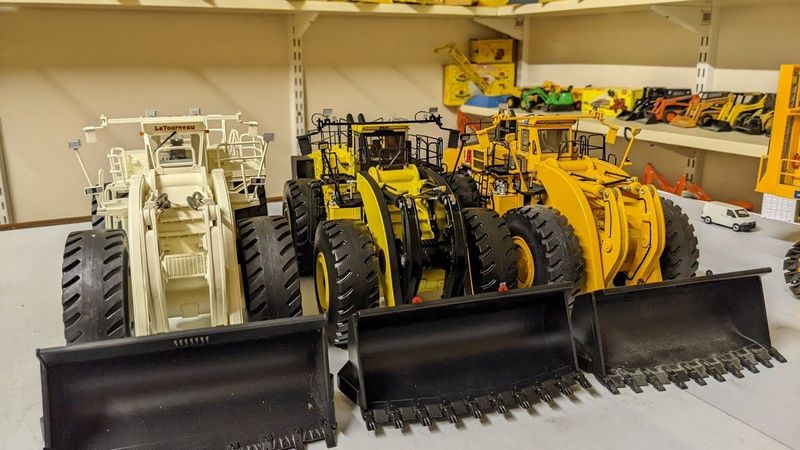

LeTourneau L1850 High Lift
Browse All LeTourneau or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 24.12 ft in (7350 mm) |
| Bucket Capacity - Heaped | 31 yd3 (23.7 m3) |
| Bucket Width | 21 ft in (6400 mm) |
| Breakout Force | 280672 lb (1248.5 kN) |
Dimensions
| Ground Clearance | 2.5 ft in (760 mm) |
| Length With Bucket On Ground | 60.01 ft in (18290 mm) |
| Width Over Tires | 19.82 ft in (6040 mm) |
| Height To Top Of Cab | 21.92 ft in (6680 mm) |
| Wheelbase | 23 ft in (7010 mm) |
| Hinge Pin - Max Height | 32.16 ft in (9800 mm) |
| Reach At Max Lift And Dump | 9.59 ft in (2920 mm) |
Engine
| Number Of Cylinders | 16 |
| Engine Make | 2347 |
| Engine Model | QSK 60 |
| Gross Power | 2000 hp (1491.4 kw) |
| Power Measured @ | 1900 rpm |
| Displacement | 2746 cu in (45 L) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 511005.1 lb (231788 kg) |
| Fuel Capacity | 1050.1 gal (3975 L) |
| Hydraulic System Fluid Capacity | 374.9 gal (1419 L) |
| Engine Oil Fluid Capacity | 53.9 gal (204 L) |
| Cooling System Fluid Capacity | 109.9 gal (416 L) |
| Transmission Fluid Capacity | 7.2 gal (27 L) |
| Front Axle/Diff Fluid Capacity | 25.1 gal (95 L) |
| Rear Axle/Diff Fluid Capacity | 25.1 gal (95 L) |
| Static Tipping Weight | 215003.7 lb (97524 kg) |
| Turning Radius | 44.1 ft in (13440 mm) |
| Rear Axle Oscillation | 22 degrees |
| Tire Size | 58/85-57 84 PR (L-4) |
Transmission
| Transmission Type | infinitely variable |
| Max Speed - Forward | 10.6 mph (16.9 km/h) |
| Max Speed - Reverse | 10.6 mph (16.9 km/h) |
Hydraulic System
| Relief Valve Setting | 3300 psi (22752.7 kPa) |
| Pump Flow Capacity | 500 gal/min (1892.8 L/min) |
| Raise Time | 14 sec |
| Dump Time | 4 sec |
| Lower Time | 6 sec |
| Pump Type | piston |
