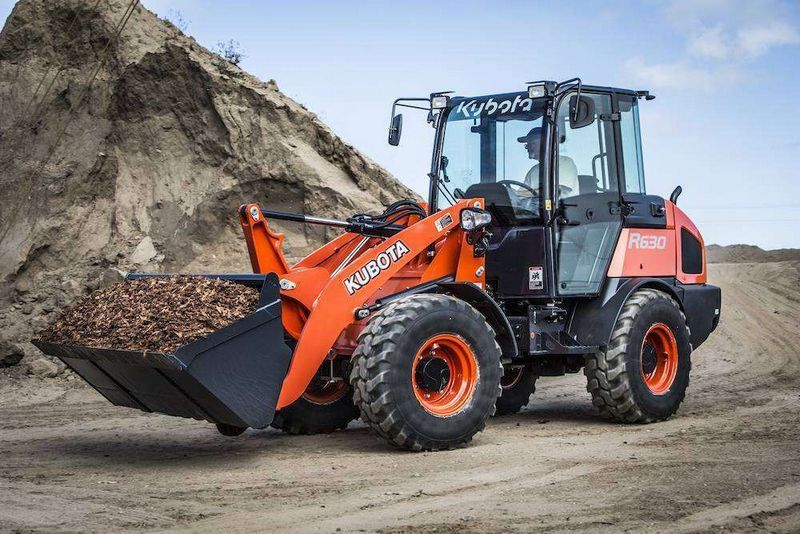

Kubota R630
Browse All Kubota or Wheel Loader Models
Contents:
Bucket
| Bucket Capacity - Heaped | 1.31 yd3 (1 m3) |
| Breakout Force | 10408.66 lb (46.3 kN) |
Dimensions
| Ground Clearance | 1.15 ft in (350 mm) |
| Length With Bucket On Ground | 17.02 ft in (5185 mm) |
| Width Over Tires | 5.93 ft in (1805 mm) |
| Height To Top Of Cab | 8.14 ft in (2480 mm) |
| Wheelbase | 6.57 ft in (2000 mm) |
| Hinge Pin - Max Height | 10.67 ft in (3250 mm) |
| Reach At Max Lift And Dump | 2.71 ft in (825 mm) |
| Tread | 55.12 in (1400 mm) |
| Articulation Angle | 40 degrees |
Electrical System
| Starter | 12 / 2 (V / kW) |
| Battery | 12 / 95 (V / Ah) |
Engine
| Emissions Certification | Tier4 Final |
| Number Of Cylinders | 4 |
| Engine Make | KUBOTA |
| Engine Model | V2607-CR-TE4 |
| Net Power | 47.9 hp (35.8 kw) |
| Gross Power | 51 hp (38.1 kw) |
| Power Measured @ | 2400 rpm |
| Displacement | 160 cu in (2.7 L) |
| Aspiration | Water-cooled |
Capacities
| Hydraulic Oil Tank | 10.4 gal (39 L) |
| Fuel Tank | 18.5 gal (70 L) |
| Hydraulic System | 15.1 gal (57 L) |
Operational
| Operating Weight | 10229.5 lb (4640 kg) |
| Traction Force | 8587.8 lb (38.2 kN) |
| Static Tipping Weight | 7606 lb (3450 kg) |
| Rear Axle Oscillation | 8 degrees |
| Tire Size | 405 / 70 R18 |
Transmission
| Transmission Type | Hydrostatic transmission |
| Max Speed - Forward | 12.5 mph (20 km/h) |
| Max Speed - Reverse | 12.5 mph (20 km/h) |
Hydraulic System
| Max Operating Pressure | 3000 psi |
| Pump Flow Capacity | 17.8 gal/min (67.2 L/min) |
| Raise Time | 5.9 sec |
| Lower Time | 4.2 sec |
