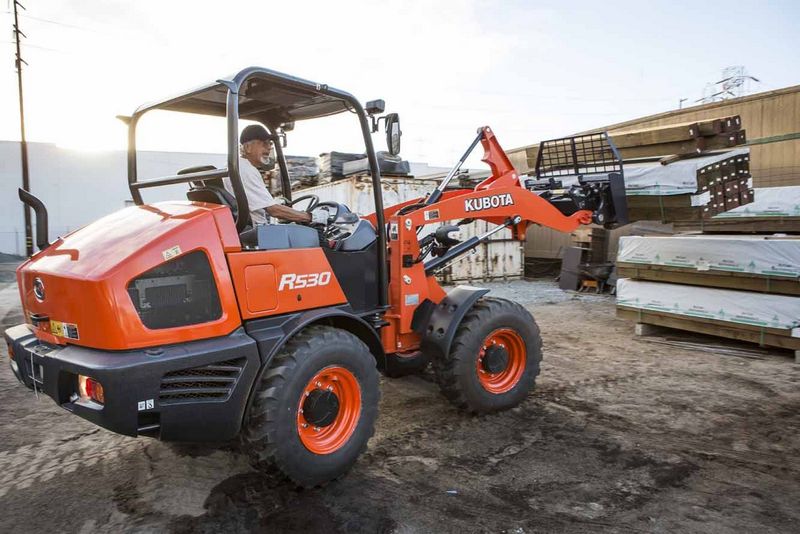

Kubota R530C
Browse All Kubota or Wheel Loader Models
Contents:
Bucket
| Bucket Capacity - Heaped | 1.12 yd3 (0.85 m3) |
| Breakout Force | 7755.91 lb (34.5 kN) |
Dimensions
| Ground Clearance | 1.07 ft in (325 mm) |
| Length With Bucket On Ground | 17.38 ft in (5295 mm) |
| Width Over Tires | 5.65 ft in (1721 mm) |
| Height To Top Of Cab | 8.13 ft in (2475 mm) |
| Wheelbase | 6.4 ft in (1950 mm) |
| Hinge Pin - Max Height | 10.59 ft in (3225 mm) |
| Reach At Max Lift And Dump | 2.73 ft in (830 mm) |
| Tread | 53.39 in (1356 mm) |
| Articulation Angle | 40 degrees |
Electrical System
| Starter | 12 / 2 (V / kW) |
| Battery | 12 / 95 (V / Ah) |
Engine
| Emissions Certification | Tier4 Final |
| Number Of Cylinders | 4 |
| Engine Make | KUBOTA |
| Engine Model | V2607-CR-E4 |
| Net Power | 47.9 hp (35.8 kw) |
| Gross Power | 51 hp (38.1 kw) |
| Power Measured @ | 2400 rpm |
| Displacement | 160 cu in (2.7 L) |
| Aspiration | Water-cooled |
Capacities
| Hydraulic Oil Tank | 10.4 gal (39 L) |
| Fuel Tank | 18.5 gal (70 L) |
| Hydraulic System | 14.6 gal (55 L) |
Operational
| Operating Weight | 9799.6 lb (4445 kg) |
| Traction Force | 6542 lb (29.1 kN) |
| Static Tipping Weight | 6536.8 lb (2965 kg) |
| Rear Axle Oscillation | 8 degrees |
| Tire Size | 365 / 70 R18 |
Transmission
| Transmission Type | Hydrostatic transmission |
| Max Speed - Forward | 12.5 mph (20 km/h) |
| Max Speed - Reverse | 12.5 mph (20 km/h) |
Hydraulic System
| Max Operating Pressure | 2700 psi |
| Pump Flow Capacity | 14.3 gal/min (53.8 L/min) |
| Raise Time | 6.3 sec |
| Lower Time | 4 sec |
