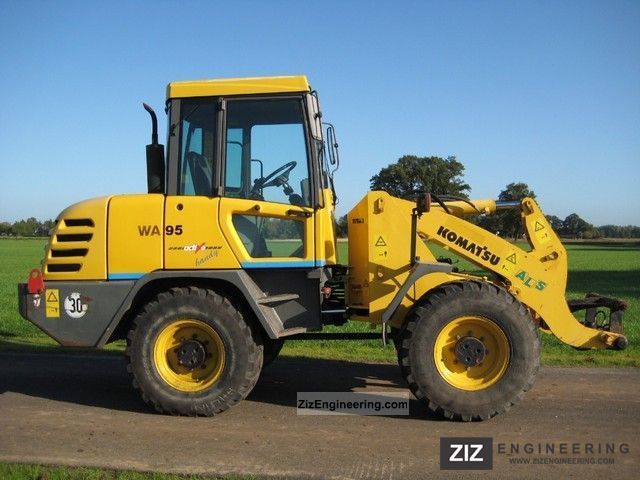

Komatsu WA95-3
Browse All Komatsu or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 8.99 ft in (2740 mm) |
| Bucket Capacity - Heaped | 1.44 yd3 (1.11 m3) |
| Bucket Width | 7.06 ft in (2150 mm) |
| Breakout Force | 16298.65 lb (72.5 kN) |
Dimensions
| Ground Clearance | 1.66 ft in (505 mm) |
| Length With Bucket On Ground | 18.25 ft in (5560 mm) |
| Height To Top Of Cab | 9.03 ft in (2750 mm) |
| Wheelbase | 7.06 ft in (2150 mm) |
| Hinge Pin - Max Height | 11.31 ft in (3445 mm) |
| Reach At Max Lift And Dump | 2.5 ft in (760 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2238 |
| Engine Model | 4D 106 E 2 |
| Gross Power | 75 hp (56 kw) |
| Power Measured @ | 2500 rpm |
| Max Torque | 191.8 lb ft (260 Nm) |
| Displacement | 269.3 cu in (4.5 L) |
| Torque Measured @ | 1500 rpm |
Operational
| Operating Weight | 12191.6 lb (5530 kg) |
| Fuel Capacity | 34.4 gal (130 L) |
| Hydraulic System Fluid Capacity | 24.9 gal (94 L) |
| Engine Oil Fluid Capacity | 4.4 gal (16.4 L) |
| Cooling System Fluid Capacity | 4.5 gal (17 L) |
| Front Axle/Diff Fluid Capacity | 1.8 gal (6.5 L) |
| Rear Axle/Diff Fluid Capacity | 3 gal (11 L) |
| Static Tipping Weight | 10714.5 lb (4860 kg) |
| Turning Radius | 13.3 ft in (4040 mm) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 80 amps |
| Rear Axle Oscillation | 24 degrees |
| Tire Size | 455/70 R 20 SPT9 |
Transmission
| Transmission Type | hydrostatic |
| Number Of Forward Gears | 2 |
| Max Speed - Forward | 12.5 mph (20 km/h) |
Hydraulic System
| Relief Valve Setting | 2755.8 psi (19000 kPa) |
| Pump Flow Capacity | 23.8 gal/min (90 L/min) |
| Raise Time | 5.7 sec |
| Dump Time | 1.1 sec |
| Lower Time | 3.7 sec |
| Pump Type | closed hydraulic circuit |
