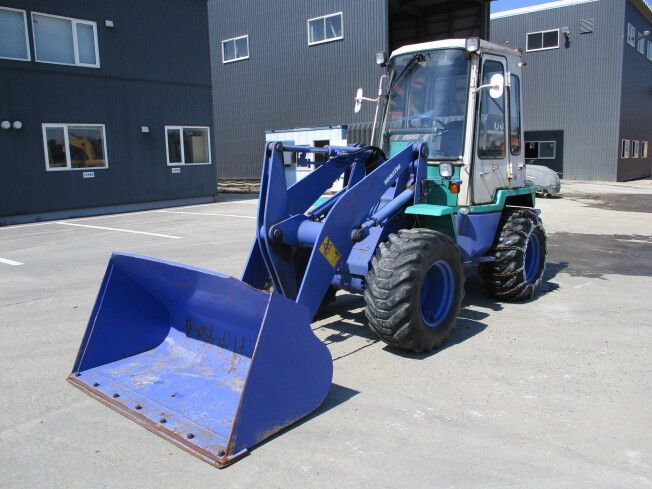

Komatsu WA50-3
Browse All Komatsu or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 7 ft in (2140 mm) |
| Bucket Capacity - Heaped | 0.75 yd3 (0.6 m3) |
| Bucket Width | 5.58 ft in (1690 mm) |
| Breakout Force | 6720 lb (3050 kN) |
Dimensions
| Ground Clearance | 1 ft in (310 mm) |
| Length With Bucket On Ground | 14.92 ft in (4550 mm) |
| Width Over Tires | 5.42 ft in (1655 mm) |
| Height To Top Of Cab | 8.17 ft in (2500 mm) |
| Wheelbase | 6.08 ft in (1850 mm) |
| Hinge Pin - Max Height | 10.25 ft in (3115 mm) |
| Reach At Max Lift And Dump | 2.96 ft in (900 mm) |
Engine
| Number Of Cylinders | 3 |
| Engine Make | 2238 |
| Engine Model | S3D84E-3B |
| Net Power | 37 hp (27.2 kw) |
| Power Measured @ | 2500 rpm |
| Displacement | 91 cu in (1.5 L) |
| Aspiration | Tuurbocharged |
Operational
| Operating Weight | 8200 lb (3720 kg) |
| Fuel Capacity | 11.9 gal (42 L) |
| Hydraulic System Fluid Capacity | 7.4 gal (28 L) |
| Engine Oil Fluid Capacity | 1.3 gal (4.7 L) |
| Cooling System Fluid Capacity | 1.5 gal (5.8 L) |
| Front Axle/Diff Fluid Capacity | 1.4 gal (9.3 L) |
| Rear Axle/Diff Fluid Capacity | 1.4 gal (9.3 L) |
| Static Tipping Weight | 5830 lb (2550 kg) |
| Turning Radius | 10.5 ft in (3210 mm) |
Transmission
| Transmission Type | Hydrostatic |
| Max Speed - Forward | 9.3 mph (15 km/h) |
| Max Speed - Reverse | 9.3 mph (15 km/h) |
Hydraulic System
| Relief Valve Setting | 2990 psi (- -) |
| Pump Flow Capacity | 11.4 gal/min (43 L/min) |
| Raise Time | 4.6 sec |
| Dump Time | 1 sec |
| Lower Time | 2.8 sec |
