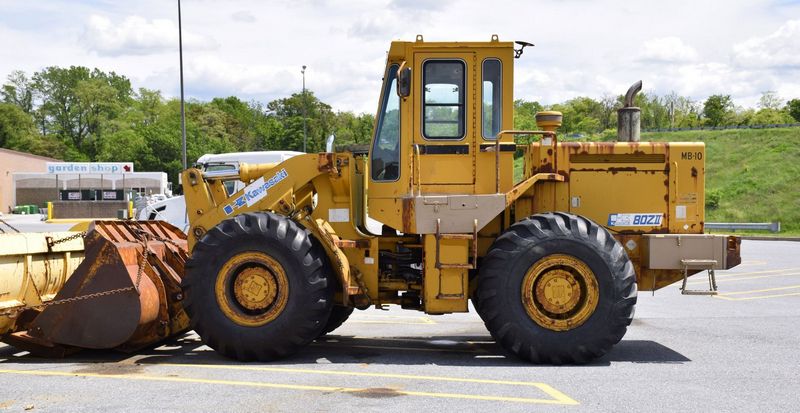

Kawasaki 80ZII
Browse All Kawasaki or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 8.99 ft in (2740 mm) |
| Bucket Capacity - Heaped | 3.67 yd3 (2.8 m3) |
| Bucket Capacity - Struck | 3.27 yd3 (2.5 m3) |
| Bucket Width | 8.86 ft in (2700 mm) |
| Breakout Force | 34840 lb (154.98 kN) |
Dimensions
| Ground Clearance | 1.32 ft in (400 mm) |
| Length With Bucket On Ground | 24.37 ft in (7425 mm) |
| Width Over Tires | 8.32 ft in (2535 mm) |
| Height To Top Of Cab | 10.88 ft in (3315 mm) |
| Wheelbase | 9.78 ft in (2980 mm) |
| Hinge Pin - Max Height | 12.75 ft in (3885 mm) |
| Reach At Max Lift And Dump | 3.7 ft in (1125 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | 6CT-8.3-C |
| Gross Power | 165 hp (123.1 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 504.5 cu in (8.3 L) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 33270 lb (15091.1 kg) |
| Fuel Capacity | 56.8 gal (215 L) |
| Hydraulic System Fluid Capacity | 47.6 gal (180 L) |
| Engine Oil Fluid Capacity | 6.1 gal (23 L) |
| Cooling System Fluid Capacity | 13.3 gal (50 L) |
| Transmission Fluid Capacity | 10.4 gal (39 L) |
| Front Axle/Diff Fluid Capacity | 8.8 gal (33 L) |
| Rear Axle/Diff Fluid Capacity | 8.8 gal (33 L) |
| Static Tipping Weight | 24090 lb (10927.1 kg) |
| Turning Radius | 21.2 ft in (6460 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 65 amps |
| Rear Axle Oscillation | 30 degrees |
| Tire Size | 20.5-25-16PR (L-2) |
Transmission
| Transmission Type | full powershift |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 21.8 mph (35.1 km/h) |
| Max Speed - Reverse | 22.7 mph (36.6 km/h) |
Hydraulic System
| Relief Valve Setting | 2775 psi (19133 kPa) |
| Pump Flow Capacity | 46 gal/min (174.2 L/min) |
| Raise Time | 6.6 sec |
| Dump Time | 1.4 sec |
| Lower Time | 3.2 sec |
| Pump Type | gear type |
