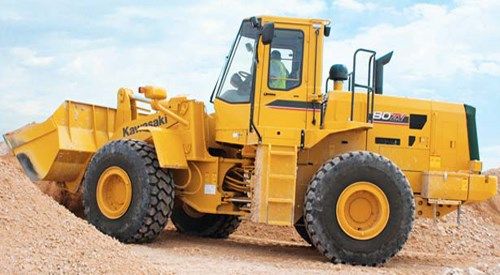

Kawasaki 80ZV-2
Browse All Kawasaki or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.72 ft in (2960 mm) |
| Bucket Capacity - Heaped | 4.19 yd3 (3.2 m3) |
| Bucket Capacity - Struck | 3.54 yd3 (2.7 m3) |
| Bucket Width | 9.19 ft in (2800 mm) |
| Breakout Force | 36193 lb (161 kN) |
Dimensions
| Ground Clearance | 1.53 ft in (465 mm) |
| Length With Bucket On Ground | 26.25 ft in (8000 mm) |
| Width Over Tires | 8.8 ft in (2680 mm) |
| Height To Top Of Cab | 11.32 ft in (3448 mm) |
| Wheelbase | 10.5 ft in (3200 mm) |
| Hinge Pin - Max Height | 13.44 ft in (4095 mm) |
| Reach At Max Lift And Dump | 3.71 ft in (1130 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | QSC8.3 |
| Net Power | 198 hp (147.7 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 645 lb ft (874.6 Nm) |
| Displacement | 504 cu in (8.3 L) |
| Torque Measured @ | 1500 rpm |
| Aspiration | turbocharged |
Operational
| Operating Weight | 39308 lb (17829.9 kg) |
| Fuel Capacity | 76.7 gal (290 L) |
| Hydraulic System Fluid Capacity | 42.3 gal (160 L) |
| Engine Oil Fluid Capacity | 8 gal (30 L) |
| Cooling System Fluid Capacity | 15.9 gal (60 L) |
| Transmission Fluid Capacity | 11.9 gal (45 L) |
| Front Axle/Diff Fluid Capacity | 14.6 gal (55 L) |
| Rear Axle/Diff Fluid Capacity | 14.6 gal (55 L) |
| Static Tipping Weight | 30600 lb (13880 kg) |
| Turning Radius | 21 ft in (6375 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 amps |
| Rear Axle Oscillation | 24 degrees |
| Tire Size | 23.5x25-16PR (L-3) |
Transmission
| Transmission Type | full powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 22.9 mph (36.9 km/h) |
| Max Speed - Reverse | 23.2 mph (37.4 km/h) |
Hydraulic System
| Relief Valve Setting | 3000 psi (20684.3 kPa) |
| Pump Flow Capacity | 19 gal/min (72 L/min) |
| Raise Time | 6.2 sec |
| Dump Time | 1.4 sec |
| Lower Time | 3.4 sec |
| Pump Type | gear type |
