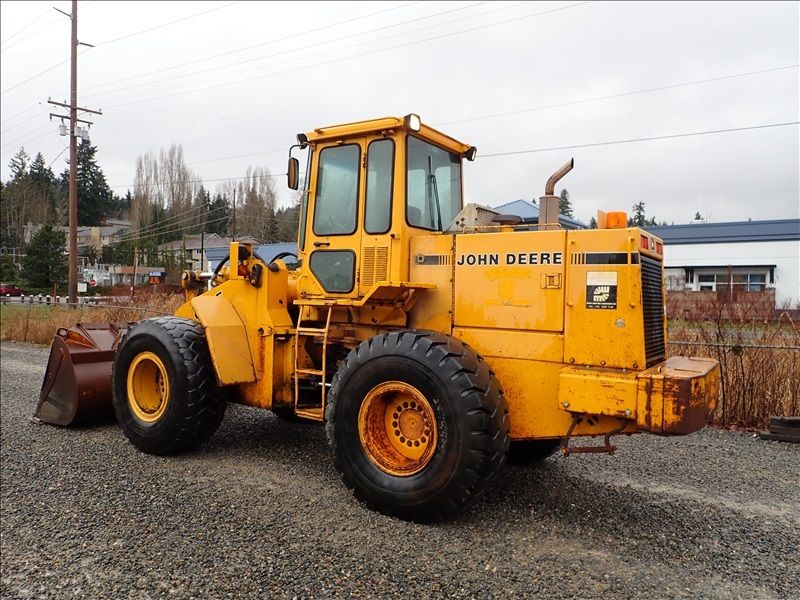

John Deere 624E w/ Coupler
Browse All John Deere or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.67 ft in (2945 mm) |
| Bucket Capacity - Heaped | 2.25 yd3 (1.73 m3) |
| Bucket Capacity - Struck | 1.88 yd3 (1.44 m3) |
| Bucket Width | 8.37 ft in (2550 mm) |
| Breakout Force | 30768 lb (136.9 kN) |
Dimensions
| Length With Bucket On Ground | 24.09 ft in (7340 mm) |
| Width Over Tires | 8.17 ft in (2489 mm) |
| Height To Top Of Cab | 10.73 ft in (3270 mm) |
| Wheelbase | 9.95 ft in (3030 mm) |
| Hinge Pin - Max Height | 12.77 ft in (3890 mm) |
| Reach At Max Lift And Dump | 2.92 ft in (888 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2240 |
| Engine Model | 6414T |
| Net Power | 135 hp (100.7 kw) |
| Gross Power | 141 hp (105.2 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 420 lb ft (569.5 Nm) |
| Displacement | 414 cu in (6.8 L) |
| Torque Measured @ | 1300 rpm |
| Aspiration | Turbocharged |
Operational
| Operating Weight | 27661 lb (12547 kg) |
| Fuel Capacity | 55 gal (208 L) |
| Hydraulic System Fluid Capacity | 27 gal (102 L) |
| Engine Oil Fluid Capacity | 5.1 gal (19 L) |
| Cooling System Fluid Capacity | 6.7 gal (25 L) |
| Transmission Fluid Capacity | 2.7 gal (10 L) |
| Front Axle/Diff Fluid Capacity | 6.1 gal (23 L) |
| Rear Axle/Diff Fluid Capacity | 4.3 gal (16 L) |
| Static Tipping Weight | 20915 lb (9487 kg) |
| Turning Radius | 16.8 ft in (5110 mm) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 65 amps |
| Rear Axle Oscillation | 26 degrees |
| Tire Size | 17.5-25 |
Transmission
| Transmission Type | Power Shift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 25.4 mph (40.9 km/h) |
| Max Speed - Reverse | 16 mph (25.8 km/h) |
Hydraulic System
| Relief Valve Setting | 2800 psi (19305.4 kPa) |
| Pump Flow Capacity | 57 gal/min (215.8 L/min) |
| Raise Time | 5.8 sec |
| Dump Time | 1.7 sec |
| Lower Time | 3.5 sec |
| Pump Type | Gear |
