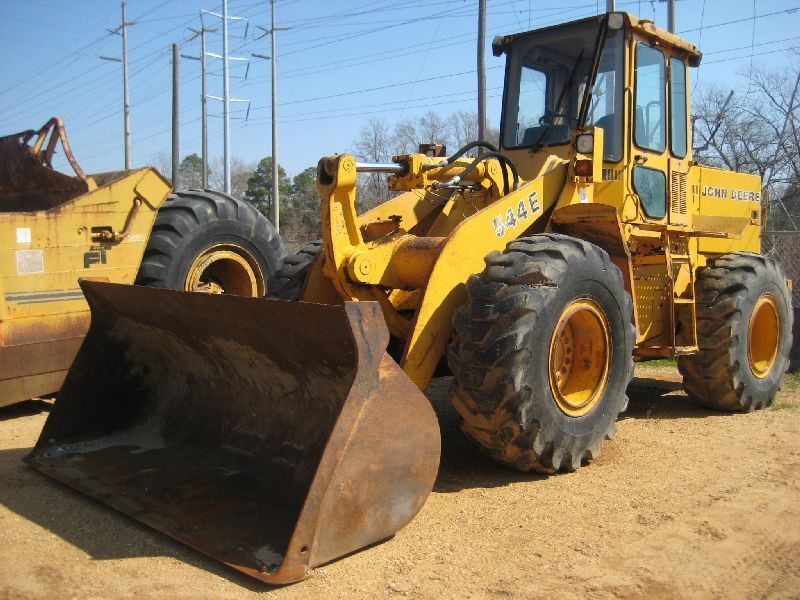

John Deere 544E w/ Coupler
Browse All John Deere or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.37 ft in (2853 mm) |
| Bucket Capacity - Heaped | 1.75 yd3 (1.34 m3) |
| Bucket Capacity - Struck | 1.5 yd3 (1.15 m3) |
| Bucket Width | 7.94 ft in (2420 mm) |
| Breakout Force | 25115 lb (111.7 kN) |
Dimensions
| Ground Clearance | 1.28 ft in (390 mm) |
| Length With Bucket On Ground | 22.45 ft in (6840 mm) |
| Width Over Tires | 7.76 ft in (2365 mm) |
| Height To Top Of Cab | 10.31 ft in (3140 mm) |
| Wheelbase | 9.52 ft in (2900 mm) |
| Hinge Pin - Max Height | 12.21 ft in (3720 mm) |
| Reach At Max Lift And Dump | 2.66 ft in (808 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2240 |
| Engine Model | 6359T |
| Net Power | 115 hp (86 kw) |
| Gross Power | 120 hp (90 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 343 lb ft (465 Nm) |
| Displacement | 359 cu in (5.9 L) |
| Torque Measured @ | 1500 rpm |
| Aspiration | Turbocharged |
Operational
| Operating Weight | 23041 lb (10451 kg) |
| Fuel Capacity | 55 gal (208 L) |
| Hydraulic System Fluid Capacity | 20.1 gal (76 L) |
| Engine Oil Fluid Capacity | 5.1 gal (19 L) |
| Cooling System Fluid Capacity | 6.4 gal (24 L) |
| Transmission Fluid Capacity | 2.6 gal (9.5 L) |
| Front Axle/Diff Fluid Capacity | 4.3 gal (16 L) |
| Rear Axle/Diff Fluid Capacity | 4.3 gal (16 L) |
| Static Tipping Weight | 16660 lb (7557 kg) |
| Turning Radius | 16.3 ft in (4950 mm) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 65 amps |
| Rear Axle Oscillation | 22 degrees |
| Tire Size | 15.5-25 |
Transmission
| Transmission Type | Power Shift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 24.6 mph (39.5 km/h) |
| Max Speed - Reverse | 17.2 mph (27.7 km/h) |
Hydraulic System
| Relief Valve Setting | 2750 psi (18962 kPa) |
| Pump Flow Capacity | 46.3 gal/min (175.3 L/min) |
| Raise Time | 5.8 sec |
| Dump Time | 1.4 sec |
| Lower Time | 3.2 sec |
| Pump Type | Gear |
