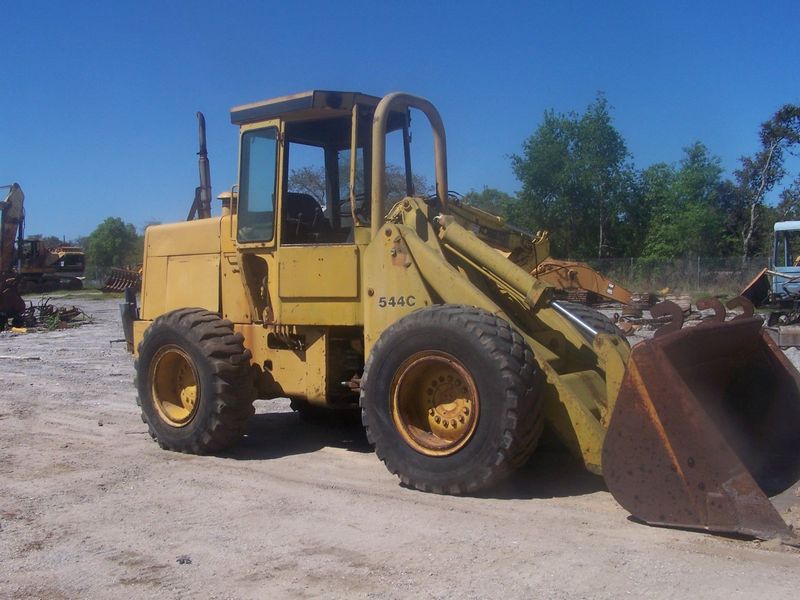

John Deere 544C
Browse All John Deere or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.5 ft in (2895.6 mm) |
| Bucket Capacity - Heaped | 2 yd3 (1.53 m3) |
| Bucket Capacity - Struck | 1.64 yd3 (1.26 m3) |
| Bucket Width | 8 ft in (2438.4 mm) |
| Breakout Force | 20520 lb (91.28 kN) |
Dimensions
| Ground Clearance | 1.44 ft in (436 mm) |
| Length With Bucket On Ground | 20.25 ft in (6172.2 mm) |
| Width Over Tires | 7.29 ft in (2222 mm) |
| Height To Top Of Cab | 10.08 ft in (3072.39 mm) |
| Wheelbase | 8.5 ft in (2590 mm) |
| Hinge Pin - Max Height | 11.92 ft in (3633.22 mm) |
| Reach At Max Lift And Dump | 2.94 ft in (894 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2240 |
| Net Power | 110 hp (82 kw) |
| Gross Power | 120 hp (90 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 342 lb ft (463.7 Nm) |
| Displacement | 414 cu in (6.8 L) |
| Torque Measured @ | 1300 rpm |
| Aspiration | Turbocharged |
Operational
| Operating Weight | 22620 lb (10260 kg) |
| Fuel Capacity | 40 gal (151.4 L) |
| Hydraulic System Fluid Capacity | 14.1 gal (53 L) |
| Engine Oil Fluid Capacity | 5.1 gal (19 L) |
| Cooling System Fluid Capacity | 6.9 gal (26 L) |
| Transmission Fluid Capacity | 9.8 gal (37 L) |
| Front Axle/Diff Fluid Capacity | 6.1 gal (23 L) |
| Rear Axle/Diff Fluid Capacity | 6.1 gal (23 L) |
| Static Tipping Weight | 16060 lb (7284.7 kg) |
| Turning Radius | 14.6 ft in (4440 mm) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 42 amps |
| Rear Axle Oscillation | 22 degrees |
| Tire Size | 17.5-25 |
Transmission
| Transmission Type | Power Shift planetary |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 27.9 mph (45 km/h) |
| Max Speed - Reverse | 9.9 mph (16 km/h) |
Hydraulic System
| Relief Valve Setting | 2625 psi (18099 kPa) |
| Pump Flow Capacity | 45.8 gal/min (173.4 L/min) |
| Raise Time | 6.1 sec |
| Dump Time | 1.8 sec |
| Lower Time | 4 sec |
| Pump Type | Gear -type pump |
