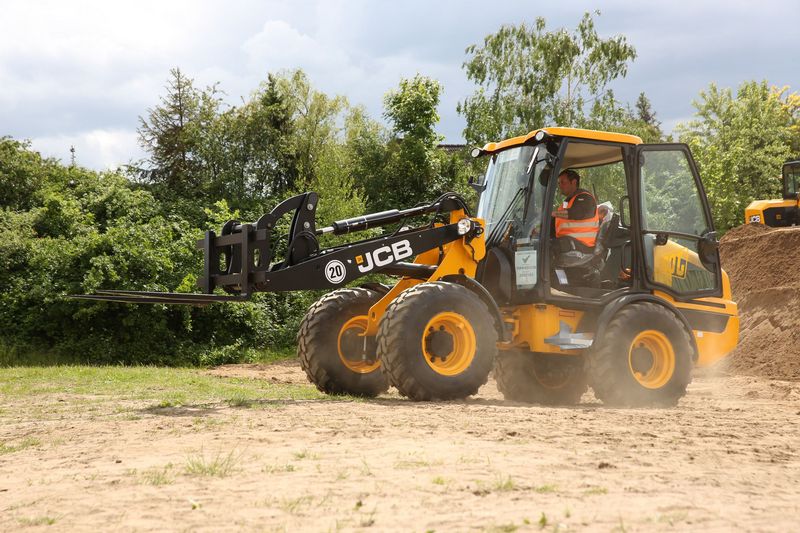

JCB 409
Browse All JCB or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 8.6 ft in (2619 mm) |
| Bucket Capacity - Heaped | 1.31 yd3 (1 m3) |
| Bucket Width | 6.4 ft in (1950 mm) |
| Breakout Force | 12094.73 lb (53.8 kN) |
Dimensions
| Ground Clearance | 1.55 ft in (472 mm) |
| Length With Bucket On Ground | 17.93 ft in (5465 mm) |
| Width Over Tires | 6.23 ft in (1898 mm) |
| Height To Top Of Cab | 8.68 ft in (2643 mm) |
| Wheelbase | 7.24 ft in (2205 mm) |
| Hinge Pin - Max Height | 10.96 ft in (3340 mm) |
| Reach At Max Lift And Dump | 1.72 ft in (523 mm) |
Electrical System
| Battery Capacity | 100 Ah |
| Alternator | 80 Ah |
| Voltage | 12 V V (deletedelete) |
Engine
| Emissions Level | Stage 3A, Tier 4 Final |
| Number Of Cylinders | 4 |
| Engine Model | JCB Diesel by Kohler - KDI 2504 TCR |
| Engine Type | 4 stroke, Electronic Common Rail |
| Gross Power | 74 hp (55.2 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 300 Nm |
| Displacement | 151.5 cu in (2.5 L) |
| Torque Measured @ | 1500 rpm |
| Aspiration | Turbocharged |
Operational
| Operating Weight | 13066.8 lb (5927 kg) |
| Fuel Capacity | 21.2 gal (80 L) |
| Hydraulic System Fluid Capacity | 18.5 gal (70 L) |
| Engine Oil Fluid Capacity | 3 gal (11.2 L) |
Transmission
| Transmission Type | Hydrostatic |
| Max Speed - Forward | 12.5 mph (20 km/h) |
Hydraulic System
| Max Operating Pressure | 250 bar |
Axles
| Axle Oil Front | 1.2 gal (4.4 L) |
| Axle Oil Rear | 1.6 gal (6.1 L) |
Hydraulic System
| Optional Auxiliary Hydraulic Pump Flow | 22 gal/min (83 L/min) |
| Pump Flow Capacity | 23.6 gal/min (89 L/min) |
| Raise Time | 4.9 sec |
| Dump Time | 4.1 sec |
| Lower Time | 3 sec |
| Pump Type | Single Gear Pump |
