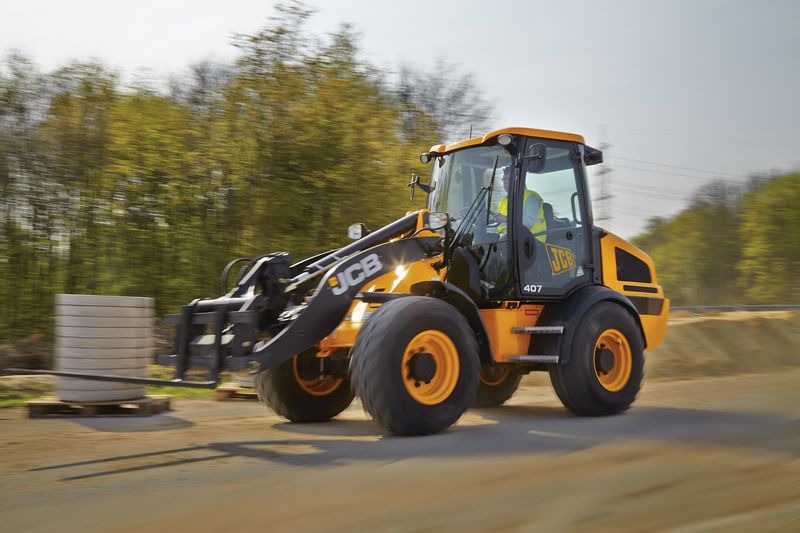

JCB 407
Browse All JCB or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 8.17 ft in (2489 mm) |
| Bucket Capacity - Heaped | 1.05 yd3 (0.8 m3) |
| Bucket Width | 6.24 ft in (1900 mm) |
| Breakout Force | 9419.5 lb (41.9 kN) |
Dimensions
| Ground Clearance | 1.03 ft in (313 mm) |
| Length With Bucket On Ground | 16.85 ft in (5133 mm) |
| Width Over Tires | 5.67 ft in (1727 mm) |
| Height To Top Of Cab | 8.21 ft in (2500 mm) |
| Wheelbase | 6.89 ft in (2100 mm) |
| Hinge Pin - Max Height | 10.24 ft in (3120 mm) |
| Reach At Max Lift And Dump | 2.51 ft in (764 mm) |
Electrical System
| Battery Capacity | 100 Ah |
| Alternator | 80 Ah |
| Voltage | 12 V V (deletedelete) |
Engine
| Emissions Level | Stage 3A, Tier 4 Final |
| Number Of Cylinders | 4 |
| Engine Model | JCB Diesel by Kohler - KDI 2504 TCR |
| Engine Type | 4 stroke, Electronic Common Rail |
| Gross Power | 64 hp (47.8 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 300 Nm |
| Displacement | 151.5 cu in (2.5 L) |
| Torque Measured @ | 1500 rpm |
| Aspiration | Turbocharged |
Operational
| Operating Weight | 11162.1 lb (5063 kg) |
| Fuel Capacity | 21.2 gal (80 L) |
| Hydraulic System Fluid Capacity | 18.5 gal (70 L) |
| Engine Oil Fluid Capacity | 3 gal (11.2 L) |
Transmission
| Transmission Type | Hydrostatic |
| Max Speed - Forward | 11.2 mph (18 km/h) |
Hydraulic System
| Max Operating Pressure | 230 bar |
Axles
| Axle Oil Front | 1.2 gal (4.4 L) |
| Axle Oil Rear | 1.6 gal (6.1 L) |
Hydraulic System
| Optional Auxiliary Hydraulic Pump Flow | 15.9 gal/min (60 L/min) |
| Pump Flow Capacity | 17 gal/min (64 L/min) |
| Raise Time | 4.9 sec |
| Dump Time | 3.5 sec |
| Lower Time | 3.1 sec |
| Pump Type | Single Gear Pump |
