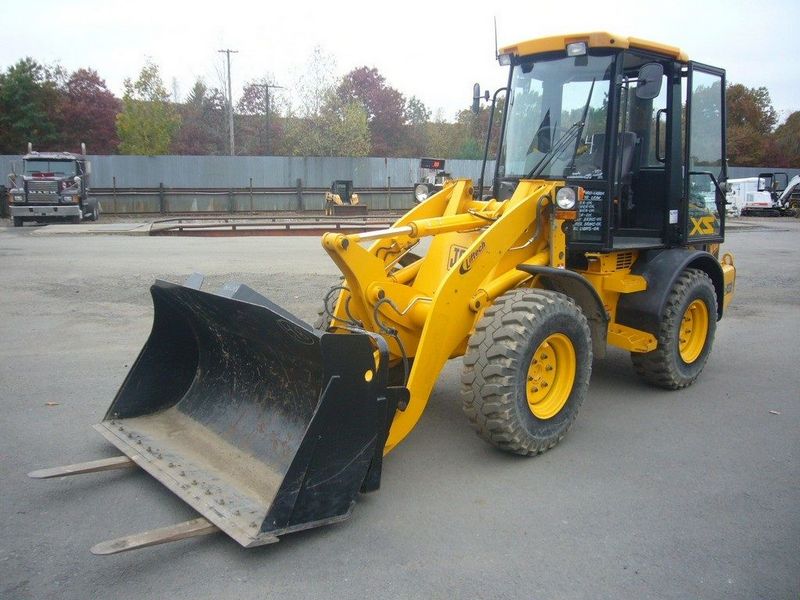

JCB 407ZX
Browse All JCB or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 8.12 ft in (2474 mm) |
| Breakout Force | 10363.7 lb (46.1 kN) |
| Bucket Capacity - Heaped | 0.92 yd3 (0.7 m3) |
| Bucket Capacity - Struck | 0.74 yd3 (0.57 m3) |
| Bucket Width | 5.75 ft in (1750 mm) |
Dimensions
| Ground Clearance | 1.22 ft in (370 mm) |
| Length With Bucket On Ground | 16.41 ft in (5000 mm) |
| Height To Top Of Cab | 8.54 ft in (2600 mm) |
| Wheelbase | 6.57 ft in (2000 mm) |
| Hinge Pin - Max Height | 10.17 ft in (3099 mm) |
| Reach At Max Lift And Dump | 2.18 ft in (662 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2257 |
| Engine Model | 1104C-44 |
| Net Power | 67 hp (50 kw) |
| Gross Power | 75 hp (56 kw) |
| Power Measured @ | 2000 rpm |
| Max Torque | 222.8 lb ft (302 Nm) |
| Displacement | 268.6 cu in (4.4 L) |
| Torque Measured @ | 1400 rpm |
| Aspiration | naturally aspirated |
Operational
| Operating Weight | 10383.8 lb (4710 kg) |
| Fuel Capacity | 26.5 gal (100 L) |
| Hydraulic System Fluid Capacity | 22.5 gal (85 L) |
| Engine Oil Fluid Capacity | 2.5 gal (9.4 L) |
| Cooling System Fluid Capacity | 4.1 gal (15.5 L) |
| Front Axle/Diff Fluid Capacity | 2.6 gal (9.5 L) |
| Rear Axle/Diff Fluid Capacity | 2.8 gal (10.5 L) |
| Turning Radius | 12.9 ft in (3920 mm) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 75 amps |
| Rear Axle Oscillation | 18 degrees |
Transmission
| Transmission Type | hydrostatic |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 12.5 mph (20 km/h) |
| Max Speed - Reverse | 12.5 mph (20 km/h) |
Hydraulic System
| Relief Valve Setting | 3191 psi (22001.2 kPa) |
| Pump Flow Capacity | 17.5 gal/min (66 L/min) |
| Raise Time | 5 sec |
| Dump Time | 1 sec |
| Lower Time | 3.2 sec |
| Pump Type | gear |
