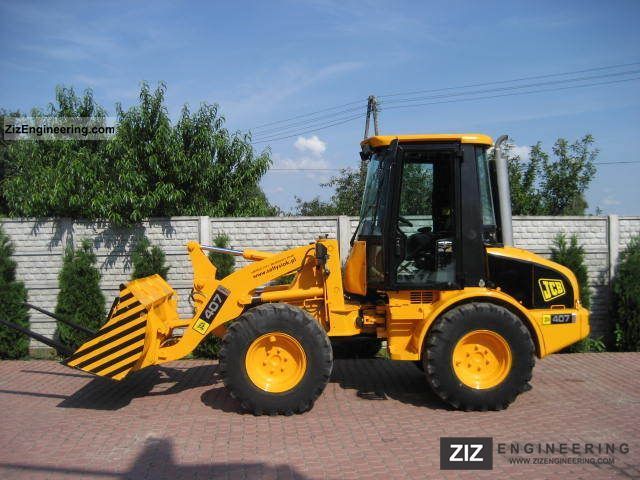

JCB 407B
Browse All JCB or Integrated Tool Carrier Models
Contents:
Dimensions
| Length W/ Bucket On Ground | 16.29 ft in (4963 mm) |
| Width Over Tires | 5.56 ft in (1692 mm) |
| Height To Top Of Cab | 8.53 ft in (2597 mm) |
| Wheelbase | 6.57 ft in (2000 m) |
| Ground Clearance | 1.21 ft in (367 mm) |
| Hinge Pin Max Height | 10.17 ft in (3099 mm) |
| Dump Clearance At Max Lift | 8.12 ft in (2474 mm) |
| Max Lift Height | 9.78 ft in (2978 mm) |
| Fork Tine Length | 3.94 ft in (1200 mm) |
| Reach At Max Height And Dump | 2.18 ft in (662 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Model | ECE R49.4 |
| Gross Power | 65 hp (48.5 kw) |
| Net Power | 63 hp (47 kw) |
| Power Measured @ | 2000 rpm |
| Max Torque | 183 lb ft (248 Nm) |
| Torque Measured @ | 1200 rpm |
| Displacement | 299.1 cu in (4.9 L) |
Operational
| Fuel Capacity | 26.5 gal (100 L) |
| Cooling System Fluid Capacity | 4.1 gal (15.5 L) |
| Engine Oil Capacity | 2.9 gal (10.7 L) |
| Front Diff Fluid Capacity | 2.6 gal (9.5 L) |
| Rear Diff Fluid Capacity | 2.8 gal (10.5 L) |
| Hydraulic System Fluid Capacity | 22.5 gal (85 L) |
| Turning Radius | 12.9 ft in (3925 mm) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 65 amps |
| Static Tipping Load - Bucket | 6644.8 lb (3014 kg) |
| Static Tipping Load - Forks | 4850.2 lb (2200 kg) |
| Tire Size | 12.5x20 |
Transmission
| Transmission Type | hydrostatic |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed Forward | 12.5 mph (20 km/h) |
| Max Speed Reverse | 12.5 mph (20 km/h) |
Hydraulic System
| Pump Type | single gear pump with priority supply to steering circuit at all times |
| Relief Valve Setting | 3190.9 psi (22000 kPa) |
| Pump Flow Capacity | 17 gal/min (64 L/min) |
Bucket
| Breakout Force | 9923 lb (44.2 kN) |
| Bucket Capacity - Heaped | 1 yd3 (0.7 m3) |
| Bucket Capacity - Struck | 0.8 yd3 (0.6 m3) |
