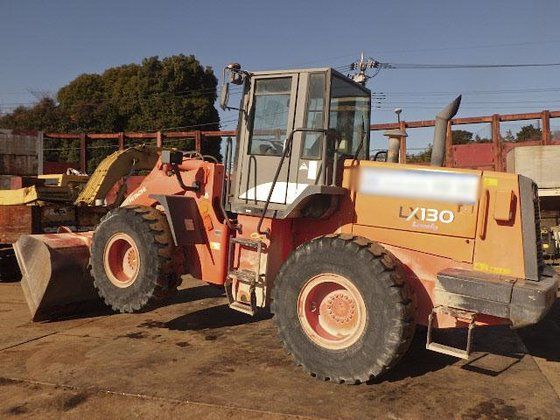

Hitachi LX130-7
Browse All Hitachi or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.09 ft in (2770 mm) |
| Bucket Capacity - Heaped | 3.54 yd3 (2.7 m3) |
| Bucket Width | 8.83 ft in (2690 mm) |
| Breakout Force | 28101.12 lb (125 kN) |
Dimensions
| Ground Clearance | 1.33 ft in (405 mm) |
| Length With Bucket On Ground | 24.68 ft in (7520 mm) |
| Width Over Tires | 8.57 ft in (2610 mm) |
| Height To Top Of Cab | 10.63 ft in (3240 mm) |
| Wheelbase | 10.01 ft in (3050 mm) |
| Hinge Pin - Max Height | 12.77 ft in (3890 mm) |
| Reach At Max Lift And Dump | 3.48 ft in (1060 mm) |
Engine
| Engine Make | 2353 |
| Engine Model | BB-6HK1T |
| Net Power | 173 hp (129.1 kw) |
| Power Measured @ | 2300 rpm |
| Displacement | 475.4 cu in (7.8 L) |
Operational
| Operating Weight | 30357.7 lb (13770 kg) |
| Fuel Capacity | 60.8 gal (230 L) |
| Turning Radius | 17.2 ft in (5230 mm) |
| Tire Size | 20.5-25-12PR L3 |
Transmission
| Transmission Type | 4-speed full powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 21.5 mph (34.5 km/h) |
| Max Speed - Reverse | 23 mph (37 km/h) |
Hydraulic System
| Raise Time | 5.8 sec |
| Dump Time | 1.4 sec |
| Lower Time | 3.3 sec |
