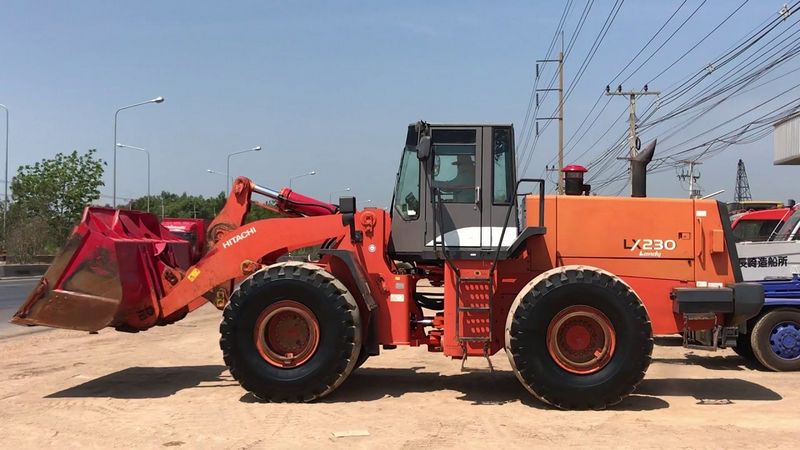

Hitachi LX230-7
Browse All Hitachi or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 10.29 ft in (3135 mm) |
| Bucket Capacity - Heaped | 5.24 yd3 (4 m3) |
| Bucket Width | 10.34 ft in (3150 mm) |
| Breakout Force | 44512.17 lb (198 kN) |
Dimensions
| Ground Clearance | 1.71 ft in (520 mm) |
| Length With Bucket On Ground | 28.38 ft in (8650 mm) |
| Width Over Tires | 9.78 ft in (2980 mm) |
| Height To Top Of Cab | 11.39 ft in (3470 mm) |
| Wheelbase | 11.16 ft in (3400 mm) |
| Hinge Pin - Max Height | 14.39 ft in (4385 mm) |
| Reach At Max Lift And Dump | 4.19 ft in (1275 mm) |
Engine
| Engine Make | 2251 |
| Engine Model | 6D24TL |
| Net Power | 266 hp (198.4 kw) |
| Power Measured @ | 2100 rpm |
| Displacement | 729 cu in (12 L) |
Operational
| Operating Weight | 47994.7 lb (21770 kg) |
| Fuel Capacity | 97.8 gal (370 L) |
| Turning Radius | 19.1 ft in (5820 mm) |
| Tire Size | 26.5-25-20 PR L3 |
Transmission
| Transmission Type | 4-speed full powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 21.5 mph (34.5 km/h) |
| Max Speed - Reverse | 22.7 mph (36.5 km/h) |
Hydraulic System
| Raise Time | 6.4 sec |
| Dump Time | 1.5 sec |
| Lower Time | 3.6 sec |
