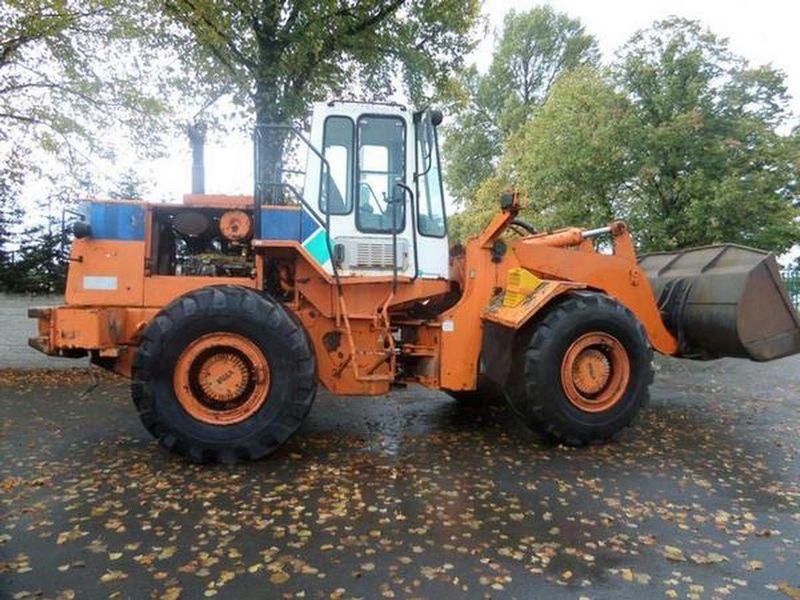

Halla HA290
Browse All Halla or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.67 ft in (2945 mm) |
| Breakout Force | 35273 lb (156.91 kN) |
| Bucket Capacity - Heaped | 3.8 yd3 (2.9 m3) |
| Bucket Width | 9.72 ft in (2960 mm) |
Dimensions
| Ground Clearance | 1.53 ft in (465 mm) |
| Length With Bucket On Ground | 24.94 ft in (7600 mm) |
| Height To Top Of Cab | 10.86 ft in (3310 mm) |
| Wheelbase | 10.5 ft in (3200 mm) |
| Reach At Max Lift And Dump | 3.37 ft in (1025 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | 6CT8.3C |
| Net Power | 189 hp (141 kw) |
| Gross Power | 192 hp (143.2 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 608 lb ft (824.4 Nm) |
| Displacement | 504.7 cu in (8.3 L) |
| Torque Measured @ | 1500 rpm |
| Aspiration | turbocharged |
Operational
| Operating Weight | 34259.9 lb (15540 kg) |
| Fuel Capacity | 75.6 gal (286 L) |
| Hydraulic System Fluid Capacity | 29.6 gal (112 L) |
| Engine Oil Fluid Capacity | 5 gal (18.9 L) |
| Cooling System Fluid Capacity | 11.9 gal (45 L) |
| Transmission Fluid Capacity | 4.8 gal (18 L) |
| Front Axle/Diff Fluid Capacity | 8.5 gal (32 L) |
| Rear Axle/Diff Fluid Capacity | 8.5 gal (32 L) |
| Static Tipping Weight | 28832.1 lb (13078 kg) |
| Turning Radius | 16.5 ft in (5010 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 amps |
| Rear Axle Oscillation | 28 degrees |
| Tire Size | 23.5x25 16PR |
Transmission
| Transmission Type | full powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 24.3 mph (39 km/h) |
| Max Speed - Reverse | 15.6 mph (25 km/h) |
Hydraulic System
| Relief Valve Setting | 2957 psi (20387.8 kPa) |
| Pump Flow Capacity | 66.6 gal/min (252 L/min) |
| Raise Time | 6.6 sec |
| Dump Time | 1.5 sec |
| Lower Time | 2.5 sec |
| Pump Type | closed with pressure & vacuum relief |
