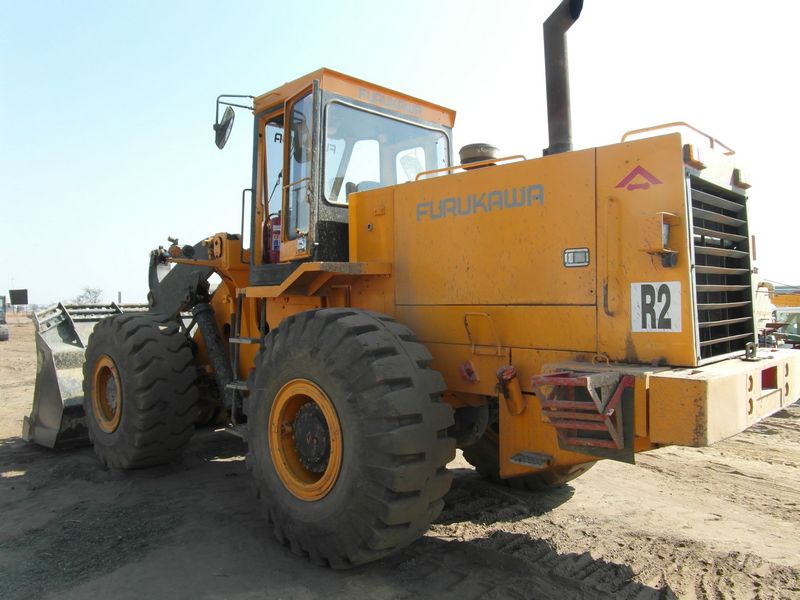

Furukawa FL330-II
Browse All Furukawa or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.65 ft in (2940 mm) |
| Breakout Force | 40780.34 lb (181.4 kN) |
| Bucket Capacity - Heaped | 4.84 yd3 (3.7 m3) |
| Bucket Width | 9.98 ft in (3040 mm) |
Dimensions
| Ground Clearance | 1.42 ft in (430 mm) |
| Length With Bucket On Ground | 26.81 ft in (8170 mm) |
| Height To Top Of Cab | 11.41 ft in (3475 mm) |
| Wheelbase | 10.5 ft in (3200 mm) |
| Reach At Max Lift And Dump | 3.78 ft in (1150 mm) |
Engine
| Engine Make | 2251 |
| Engine Model | C 6D24T |
| Net Power | 218 hp (162.5 kw) |
Operational
| Operating Weight | 42659.5 lb (19350 kg) |
| Fuel Capacity | 87.2 gal (330 L) |
| Static Tipping Weight | 29321.5 lb (13300 kg) |
| Tire Size | 23.5x2516 PR |
Transmission
| Transmission Type | powershift planetary automatic |
| Max Speed - Forward | 21.2 mph (34 km/h) |
