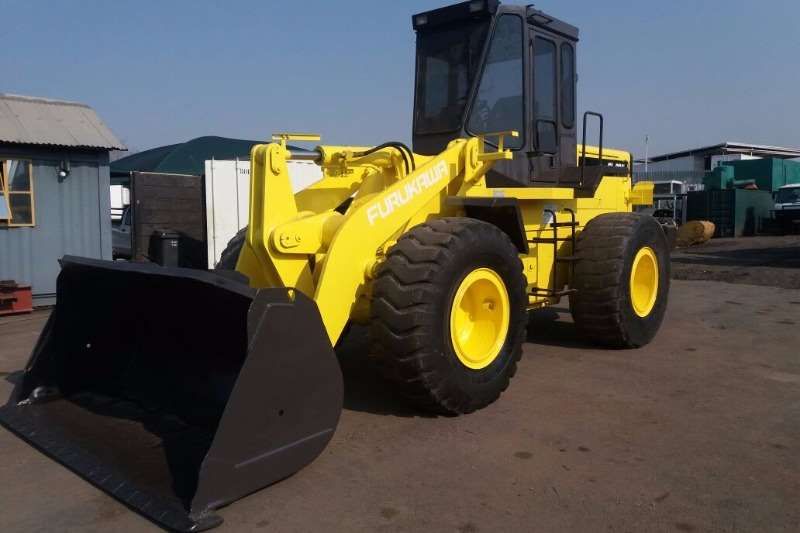

Furukawa FL325
Browse All Furukawa or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 8.93 ft in (2720 mm) |
| Breakout Force | 25133.64 lb (111.8 kN) |
| Bucket Capacity - Heaped | 2.49 yd3 (1.9 m3) |
| Bucket Width | 8.14 ft in (2480 mm) |
Dimensions
| Ground Clearance | 1.22 ft in (370 mm) |
| Length With Bucket On Ground | 22.99 ft in (7005 mm) |
| Height To Top Of Cab | 10.7 ft in (3260 mm) |
| Wheelbase | 9.52 ft in (2900 mm) |
| Reach At Max Lift And Dump | 3.84 ft in (1170 mm) |
Engine
| Engine Make | 2353 |
| Engine Model | A6BGIT |
| Net Power | 126 hp (93.9 kw) |
Operational
| Operating Weight | 21605.4 lb (9800 kg) |
| Fuel Capacity | 50.2 gal (190 L) |
| Static Tipping Weight | 17714.2 lb (8035 kg) |
| Tire Size | 17.25X2512PR |
