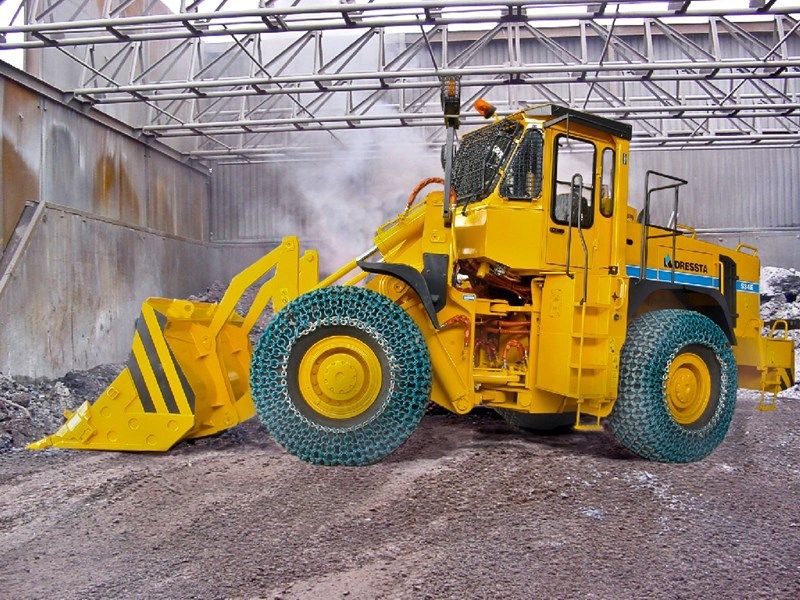

Dressta 534E
Browse All Dressta or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 10.17 ft in (3099.82 mm) |
| Bucket Capacity - Heaped | 4.5 yd3 (3.4 m3) |
| Bucket Capacity - Struck | 3.95 yd3 (3.02 m3) |
| Bucket Width | 9.17 ft in (2795.02 mm) |
| Breakout Force | 31472 lb (140 kN) |
Dimensions
| Ground Clearance | 1.28 ft in (390 mm) |
| Length With Bucket On Ground | 26.67 ft in (8129.02 mm) |
| Width Over Tires | 6.83 ft in (2081.79 mm) |
| Height To Top Of Cab | 12 ft in (3657.6 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | QSC8.3 |
| Net Power | 227 hp (169 kw) |
| Gross Power | 240 hp (179 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 800 lb ft (1085 Nm) |
| Displacement | 505 cu in (8.3 L) |
| Torque Measured @ | 1500 rpm |
| Aspiration | Turbocharged and CAC |
Operational
| Operating Weight | 45370 lb (20580 kg) |
| Fuel Capacity | 79.3 gal (300 L) |
| Hydraulic System Fluid Capacity | 60.8 gal (230 L) |
| Engine Oil Fluid Capacity | 5 gal (19 L) |
| Cooling System Fluid Capacity | 9.2 gal (35 L) |
| Transmission Fluid Capacity | 25 gal (95 L) |
| Static Tipping Weight | 38933 lb (17660 kg) |
| Turning Radius | 20.5 ft in (6224.1 mm) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 70 amps |
| Rear Axle Oscillation | 26 degrees |
| Tire Size | 23.5x25-20PR(L3) standard |
Transmission
| Transmission Type | Countershaft type powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 26.3 mph (42.4 km/h) |
| Max Speed - Reverse | 26.3 mph (42.4 km/h) |
Hydraulic System
| Relief Valve Setting | 2320 psi (15995.9 kPa) |
| Pump Flow Capacity | 50 gal/min (188 L/min) |
| Raise Time | 6 sec |
| Dump Time | 2 sec |
| Lower Time | 3.5 sec |
| Pump Type | Gear type driven from torque converter. |
