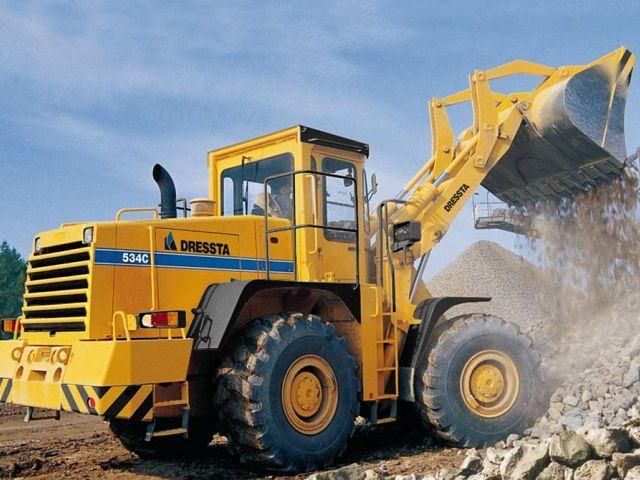

Dressta 534C
Browse All Dressta or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 10.17 ft in (3099.82 mm) |
| Bucket Capacity - Heaped | 4.5 yd3 (3.4 m3) |
| Bucket Capacity - Struck | 3.95 yd3 (3.02 m3) |
| Bucket Width | 9.17 ft in (2795.02 mm) |
| Breakout Force | 31472 lb (140 kN) |
Dimensions
| Ground Clearance | 1.28 ft in (390 mm) |
| Length With Bucket On Ground | 26 ft in (7924.8 mm) |
| Width Over Tires | 6.83 ft in (2081.79 mm) |
| Height To Top Of Cab | 12 ft in (3657.6 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | C8.3 |
| Net Power | 204 hp (152 kw) |
| Gross Power | 215 hp (160 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 719 lb ft (975 Nm) |
| Displacement | 506 cu in (8.3 L) |
| Torque Measured @ | 1500 rpm |
| Aspiration | 4-cycle diesel, turbocharged, CAC, direct start, direct injection |
Operational
| Operating Weight | 44930 lb (20380 kg) |
| Fuel Capacity | 79.3 gal (300 L) |
| Hydraulic System Fluid Capacity | 60.8 gal (230 L) |
| Engine Oil Fluid Capacity | 5 gal (19 L) |
| Cooling System Fluid Capacity | 8.5 gal (32 L) |
| Transmission Fluid Capacity | 25 gal (95 L) |
| Static Tipping Weight | 37412 lb (16970 kg) |
| Turning Radius | 20.5 ft in (6220 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 amps |
| Rear Axle Oscillation | 26 degrees |
| Tire Size | 23.5x25-20PR(L3) standard |
Transmission
| Transmission Type | Countershaft type powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 24.2 mph (39 km/h) |
| Max Speed - Reverse | 24.2 mph (39 km/h) |
Hydraulic System
| Relief Valve Setting | 2175 psi (14996.1 kPa) |
| Pump Flow Capacity | 79.5 gal/min (301 L/min) |
| Raise Time | 6 sec |
| Dump Time | 2 sec |
| Lower Time | 3.5 sec |
| Pump Type | One single and one double gear type driven from accessory drive |
