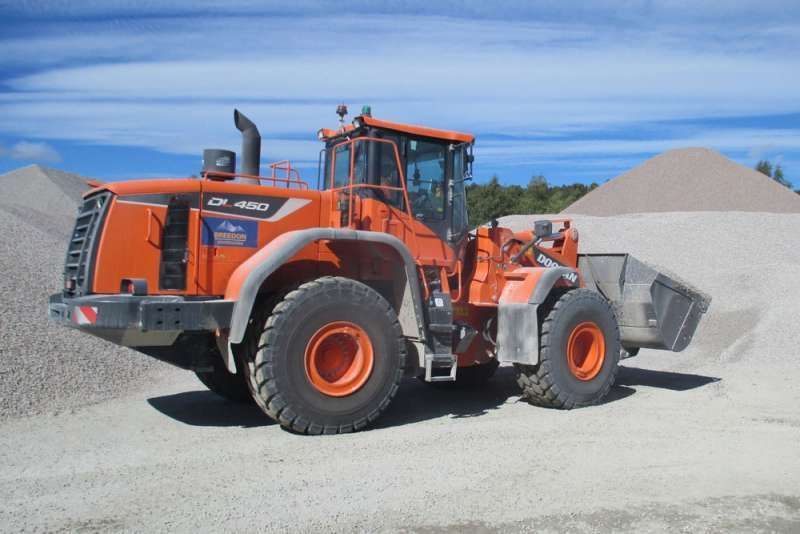

Doosan DL450-5
Browse All Doosan or Wheel Loader Models
Contents:
Bucket
| Bucket Capacity - Heaped | 6.28 yd3 (4.8 m3) |
| Bucket Width | 10.76 ft in (3277 mm) |
| Breakout Force | 51930 lb (231 kN) |
Dimensions
| Ground Clearance | 1.5 ft in (455 mm) |
| Width Over Tires | 9.79 ft in (2984 mm) |
| Wheelbase | 11.65 ft in (3550 mm) |
| Hinge Pin - Max Height | 14.77 ft in (4500 mm) |
| Reach At Max Lift And Dump | 4.2 ft in (1280 mm) |
| Overall Height | 11.75 ft in (3581 mm) |
| Overall Length | 30.04 ft in (9155 mm) |
| Digging Depth | 4.14 in (105 mm) |
Engine
| Starter | 8 hp (6 kw) |
| Horsepower -Net | 271 hp (202.1 kw) |
| Number Of Cylinders | 6 |
| Engine Make | Scania |
| Engine Model | DC13 |
| Gross Power | 344.7 hp (257 kw) |
| Power Measured @ | 1800 rpm |
| Displacement | 775.1 cu in (12.7 L) |
| Net Torque | 1121.1 lb ft (1520 Nm) |
| Torque Measured @ | 1400 rpm |
| Bore | 5.2 in (130 mm) |
| Stroke | 6.3 in (160 mm) |
| Alternator | 100 amps |
Capacities
| Fuel Tank | 89 gal (337 L) |
| Diesel Exhaust Fluid (Def) Tank | 16 gal (60.6 L) |
| Cooling System | 16 gal (60.6 L) |
| Transmission | 14 gal (53 L) |
| Hydraulic System | 61 gal (231 L) |
| Engine Oil | 10 gal (37.9 L) |
Operational
| Operating Weight | 56868.3 lb (25795 kg) |
| Front Axle/Diff Fluid Capacity | 11 gal (41.7 L) |
| Rear Axle/Diff Fluid Capacity | 11 gal (41.7 L) |
| Static Tipping Weight | 45227.9 lb (20515 kg) |
| Operating Voltage | 28 V |
| Tire Size | 26.5-25 |
Transmission
| Max Speed - Forward | 22.4 mph (36.1 km/h) |
| Max Speed - Reverse | 16.4 mph (26.4 km/h) |
Hydraulic System
| Raise Time | 6.3 sec |
| Dump Time | 1.6 sec |
| Lower Time | 3 sec |
| Relief Valve Pressure | 3989 psi (27503.2 kPa) |
