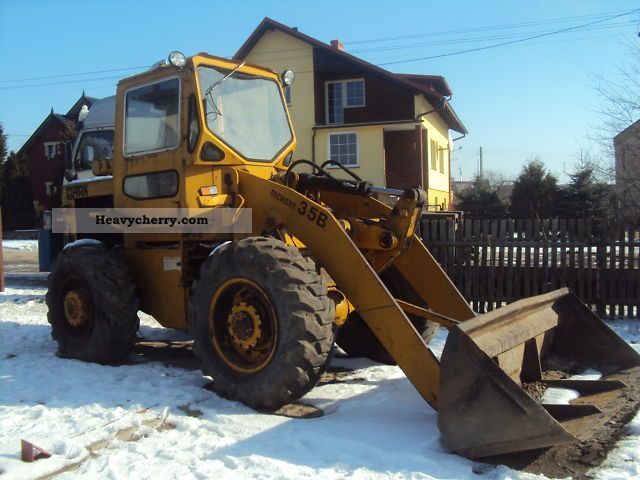

Clark Michigan 35B
Browse All Clark Michigan or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 8.73 ft in (2660 mm) |
| Bucket Capacity - Heaped | 1.31 yd3 (1 m3) |
| Bucket Capacity - Struck | 1.12 yd3 (0.85 m3) |
| Bucket Width | 6.96 ft in (2120 mm) |
| Breakout Force | 10655.95 lb (47.4 kN) |
Dimensions
| Ground Clearance | 1.17 ft in (355 mm) |
| Length With Bucket On Ground | 18.02 ft in (5490 mm) |
| Width Over Tires | 6.67 ft in (2030 mm) |
| Height To Top Of Cab | 9.5 ft in (2895 mm) |
| Wheelbase | 7.71 ft in (2350 mm) |
| Hinge Pin - Max Height | 11.13 ft in (3390 mm) |
| Reach At Max Lift And Dump | 3.29 ft in (1000 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2353 |
| Engine Model | D500PL |
| Net Power | 74 hp (55.2 kw) |
| Gross Power | 84 hp (62.7 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 194.8 lb ft (264 Nm) |
| Displacement | 303.8 cu in (5 L) |
| Torque Measured @ | 1600 rpm |
Operational
| Operating Weight | 14418.3 lb (6540 kg) |
| Fuel Capacity | 25.1 gal (95 L) |
| Hydraulic System Fluid Capacity | 21.7 gal (82 L) |
| Engine Oil Fluid Capacity | 3.5 gal (13 L) |
| Cooling System Fluid Capacity | 7.2 gal (27 L) |
| Transmission Fluid Capacity | 4.5 gal (17 L) |
| Front Axle/Diff Fluid Capacity | 3.7 gal (14 L) |
| Rear Axle/Diff Fluid Capacity | 3.7 gal (14 L) |
| Static Tipping Weight | 9479.9 lb (4300 kg) |
| Turning Radius | 16.8 ft in (5100 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 25 amps |
| Rear Axle Oscillation | 24 degrees |
| Tire Size | 12.00-24 8PR (L-2) |
Transmission
| Transmission Type | countershaft powershift |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 21.2 mph (34 km/h) |
| Max Speed - Reverse | 21.5 mph (34.5 km/h) |
Hydraulic System
| Relief Valve Setting | 2275 psi (15685.6 kPa) |
| Pump Flow Capacity | 32.3 gal/min (122 L/min) |
| Raise Time | 6 sec |
| Dump Time | 1.1 sec |
| Lower Time | 3.4 sec |
| Pump Type | gear type |
