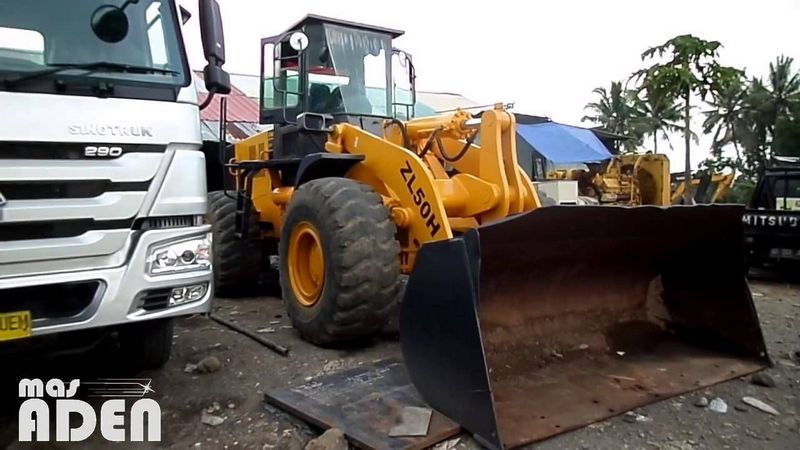

Changlin ZL50H
Browse All Changlin or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 10.01 ft in (3050 mm) |
| Bucket Capacity - Heaped | 3.93 yd3 (3 m3) |
| Breakout Force | 35969.43 lb (160 kN) |
Dimensions
| Ground Clearance | 1.48 ft in (450 mm) |
| Length With Bucket On Ground | 26.96 ft in (8215 mm) |
| Height To Top Of Cab | 11.62 ft in (3540 mm) |
| Wheelbase | 11 ft in (3350 mm) |
| Reach At Max Lift And Dump | 3.91 ft in (1190 mm) |
Engine
| Engine Make | 2347 |
| Engine Model | 6CT8.3 |
| Net Power | 205.2 hp (153 kw) |
Operational
| Operating Weight | 35935.4 lb (16300 kg) |
| Fuel Capacity | 66.1 gal (250 L) |
| Tire Size | 23.5-25-16PR |
Transmission
| Transmission Type | torque converter |
| Max Speed - Forward | 21.8 mph (35 km/h) |
| Max Speed - Reverse | 23.7 mph (38 km/h) |
